SH15240164ST

SH15240164ST

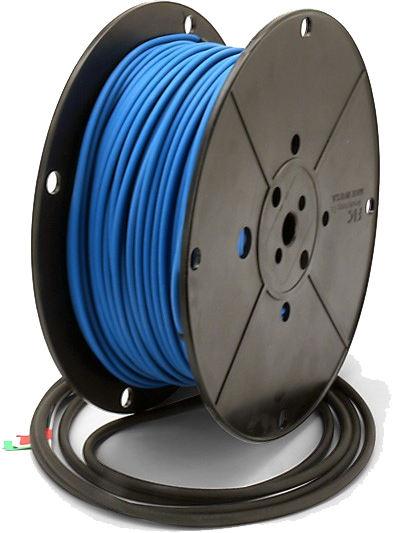

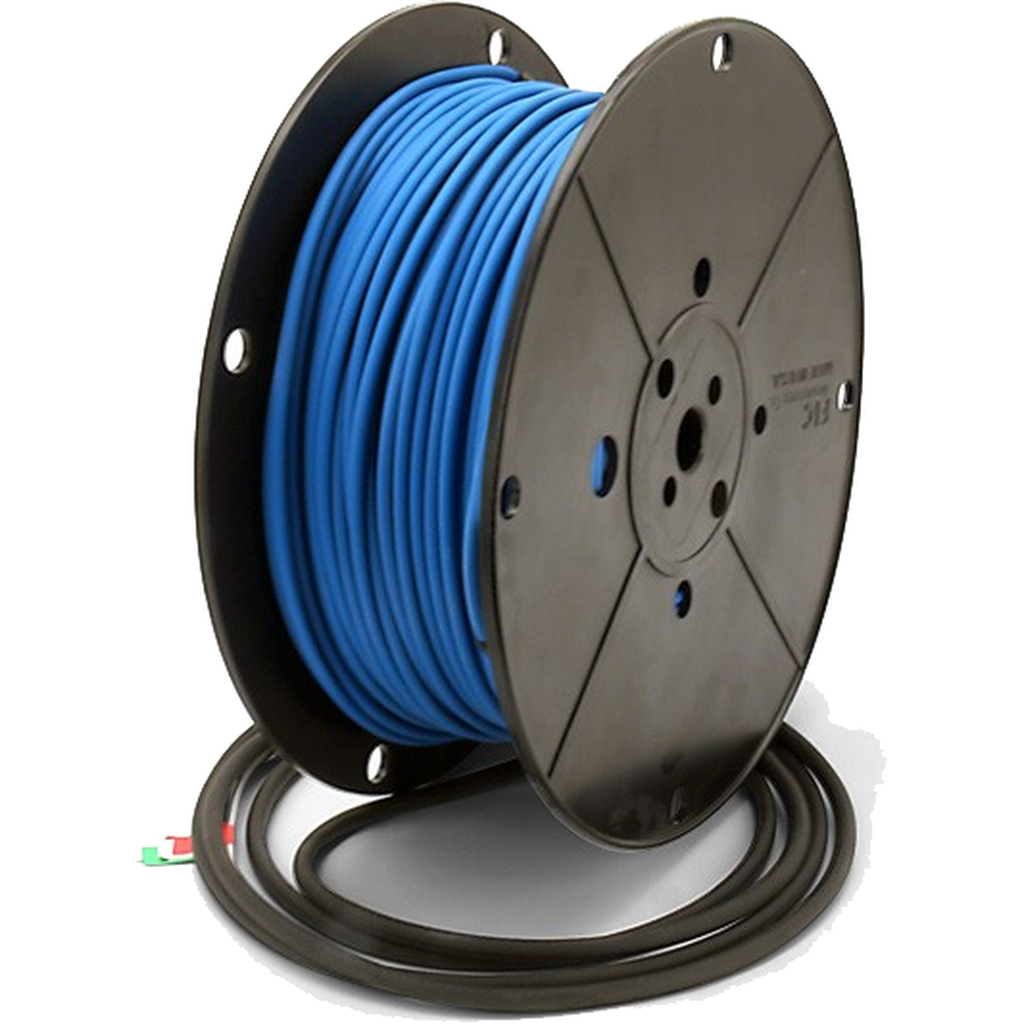

SlabHeat Cable Spool, 240V, 15W, 164 Sq.Ft. at 4 in. OC

SlabHeat Electric Indoor Slab Heating

Enjoy the simplicity of electric indoor floor heating and turn cold concrete floors into a welcoming comfort. SlabHeat is ideal for basements, garages, sunrooms, offices, warehouses, and countless other interior slab projects.

Operating a SlabHeat system couldn't be easier. Simply connect a SunStat Control or Relay directly to the SlabHeat cable with either 120 or 240 VAC line power. Each SunStat automatically turns the system on and off when needed.

What Is Electric Slab Heating?

SlabHeat is an electric heating cable used solely for indoor applications. It is perfect for new construction or remodeling projects.

Installation

  • Can be installed in a slab cap, a new slab or over an existing slab.
  • Cable can be spaced depending on your warming needs.

Technical

  • Single point connection.
  • Available in 120VAC and 240VAC

  1. SlabHeat CablePolyurethane outer jacket
  2. Foil shield
  3. Braided copper ground plane
  4. High temp ETFE element covering
  5. Oxygen-free copper alloy heating elements
Factory Direct
$ 1,275.20 $ 1,275.20

30-day money back guarantee
  • Manufacturer
  • Length
  • Insulation
  • Heating Elements
  • Output @ 4 in. Spacing
  • Output @ 6 in. Spacing
  • Resistance (Ohms)
  • Power Lead
  • Outer Jacket
  • Ground Plane
  • Max Exposure Temp
  • Minimum Operating Temperature
  • Min. Bend Radius
  • Amp Draw
  • Voltage
  • Area sqft
Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us
Manufacturer: Watts
Length: 483
Insulation: ETFE
Heating Elements: Dual, Copper
Output @ 4 in. Spacing: 15 W/sqft (51 BTUh/sqft)
Output @ 6 in. Spacing: 10 W/sqft (34 BTUh/sqft)
Resistance (Ohms): 18-23
Power Lead: 10' Long, 14 ga.
Outer Jacket: Polyurethane
Ground Plane: Full Coverage Braided Copper
Max Exposure Temp: 194 F
Minimum Operating Temperature: 50 F
Min. Bend Radius: 1 in.
Amp Draw: 10.3
Voltage: 240
Documents
Watts SunTouch Brochure Watts SunTouch SlabHeat Installation Manual Watts SunTouch SlabHeat Submittal
