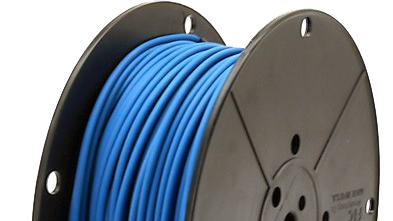

SunTouch Slab Heating Cable for Concrete Slabs

SunTouch SlabHeat cable is a complete heating cable consisting of a series resistance heating cable and a single power lead for easy single-point connection. SlabHeat cable can be installed over an existing slab in a “slab cap” or in a new slab. SlabHeat is a simple way to provide radiant heat to any space regardless of the size, shape, or thickness of the concrete slab.

SlabHeat can be used to cover one large area or be zoned into smaller areas to control heat when and where it is needed. The concrete embedded cables are connected to controls that operate the system to provide the perfect temperature. Available in several lengths and in 120 and 240 VAC.

Features

  • Simple way to provide radiant heat to any space regardless of the size, shape, or thickness of the concrete slab

  • Can be installed over an existing slab in a “slab cap” or in a new slab

  • Polyurethane outer jacket offers superior flexibility and abrasion and tear resistance to handle the rigors of concrete installation

  • Available in several lengths and in 120 and 240 VAC

Free Estimates

SlabHeat Controls and Accessories

Thermostats, Relays, Repair Kits and Tools for Installing Electric Slab Heating.

SlabHeat Coils

High Output Heating Wire for concrete slabs

200350ST
Watts Radiant Power lead splice kit, 1 repair
25.00 25.00 25.0 USD

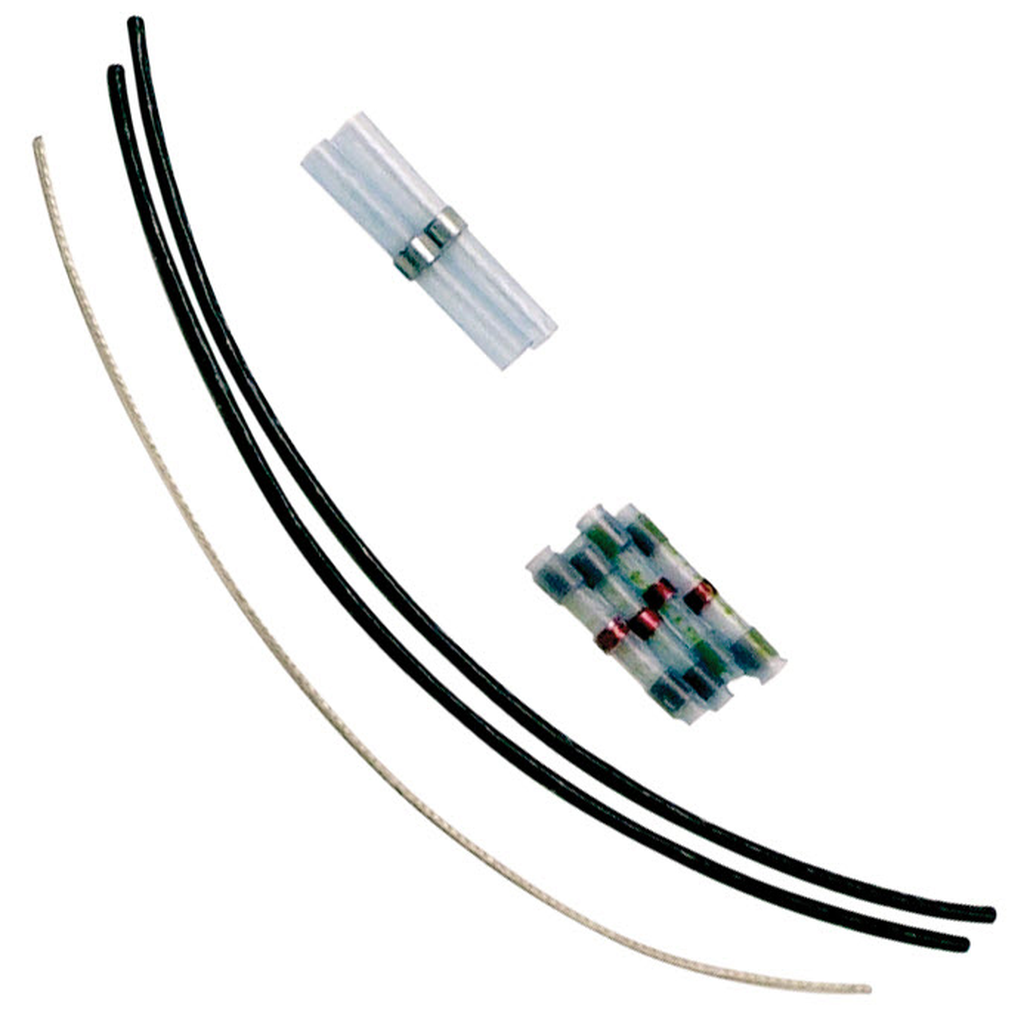

200400
SlabHeat/ProMelt Heating Wire Repair Kit, 1 repair
32.80 32.80 32.8 USD
300050
ProMelt Contactor Pro, CP-50, 50 AMP
571.20 571.20 571.2 USD
300100
ProMelt Contactor Pro, CP-100, 100 AMP
716.80 716.80 716.8000000000001 USD
300200
ProMelt Contactor Pro, CP-200, 200 AMP
1,013.60 1,013.60 1013.6 USD
423250ST
LoudMouth Monitor
24.20 24.20 24.2 USD
500110
Extra FloorStat Sensor
18.20 18.20 18.2 USD
500850-SB

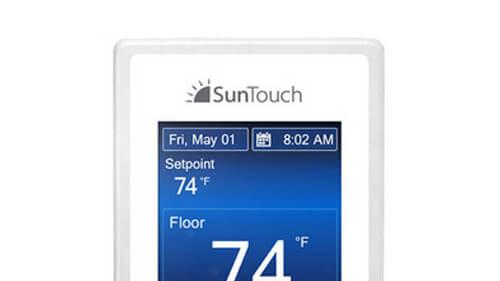

Watts Radiant Programmable Touchscreen SunStat Command Thermostat 120/240V
222.80 222.80 222.8 USD
500980
SunStat Relay R4 120/240V Sub Control
177.60 177.60 177.6 USD

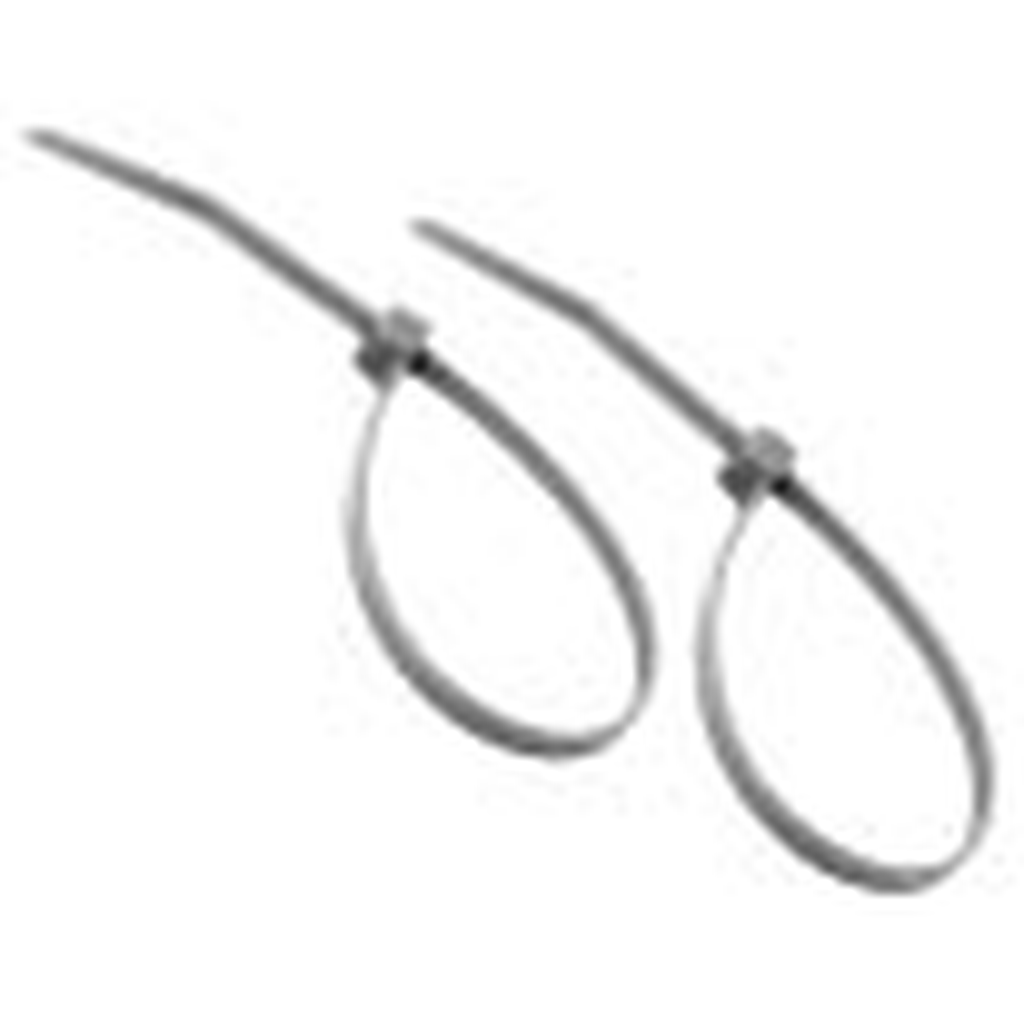

667161-1000
Cable Ties - 1000 pc
30.84 30.84 30.84 USD

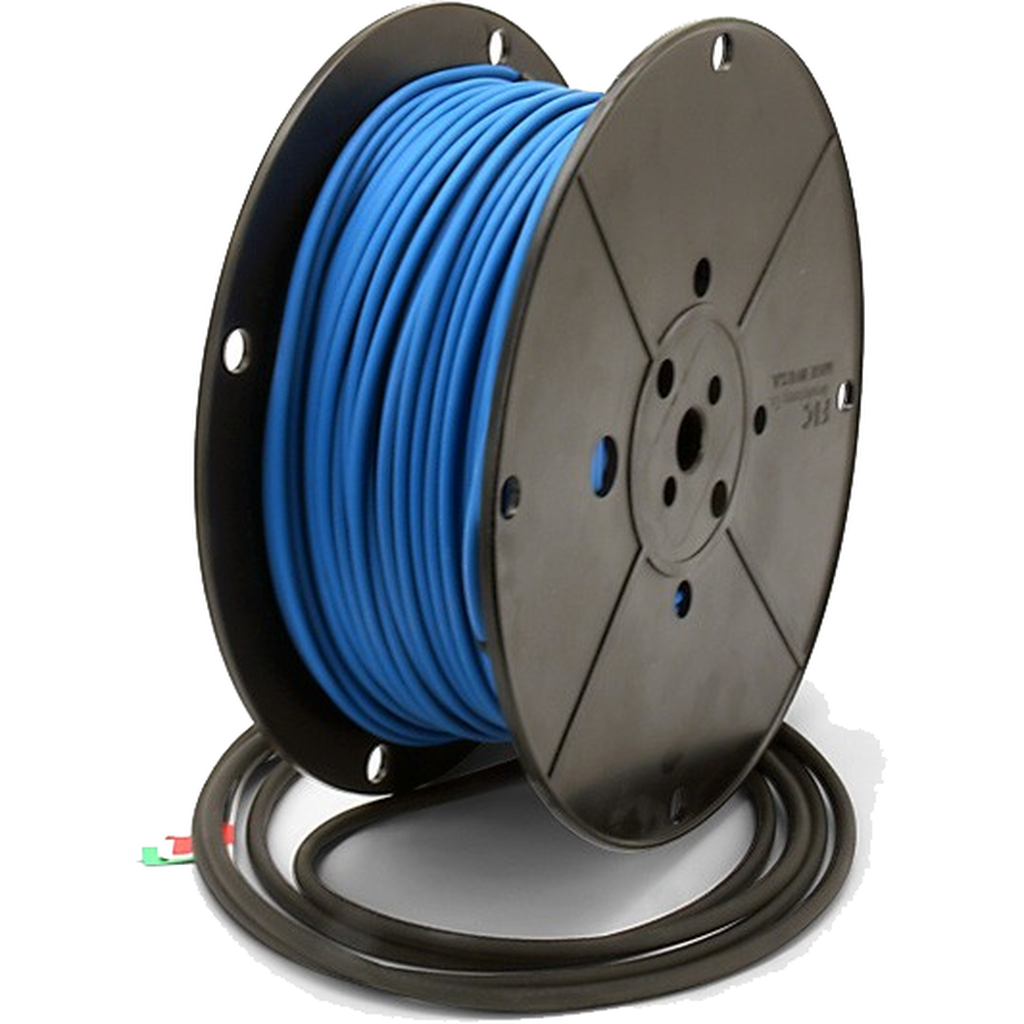

SH15120050ST
SlabHeat Cable Spool, 120V, 15W, 50 Sq.Ft. at 4 in. OC
430.00 430.00 430.0 USD
SH15120066ST
SlabHeat Cable Spool, 120V, 15W, 66 Sq.Ft. at 4 in. OC
473.60 473.60 473.6 USD
SH15120082ST
SlabHeat Cable Spool, 120V, 15W, 82 Sq.Ft. at 4 in. OC
567.60 567.60 567.6 USD
SH15120100ST
SlabHeat Cable Spool, 120V, 15W, 100 Sq.Ft. at 4 in. OC
684.40 684.40 684.4 USD
SH15120114ST
SlabHeat Cable Spool, 120V, 15W, 114 Sq.Ft. at 4 in. OC
778.80 778.80 778.8000000000001 USD
SH15240100ST
SlabHeat Cable Spool, 240V, 15W, 100 Sq.Ft. at 4 in. OC
716.80 716.80 716.8000000000001 USD
SH15240132ST
SlabHeat Cable Spool, 240V, 15W, 132 Sq.Ft. at 4 in. OC
896.80 896.80 896.8000000000001 USD

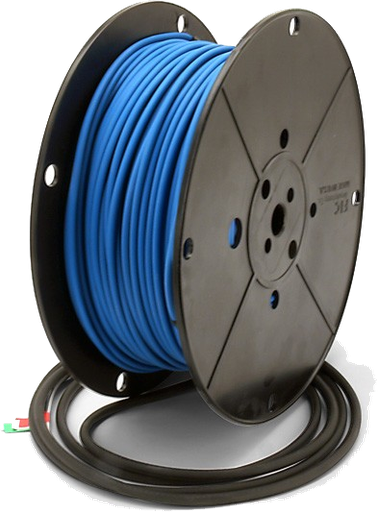

SH15240164ST
SlabHeat Cable Spool, 240V, 15W, 164 Sq.Ft. at 4 in. OC
1,066.40 1,066.40 1066.4 USD
SH15240200ST
SlabHeat Cable Spool, 240V, 15W, 200 Sq.Ft. at 4 in. OC
1,168.00 1,168.00 1168.0 USD
SH15240228ST
SlabHeat Cable Spool, 240V, 15W, 228 Sq.Ft. at 4 in. OC
1,327.20 1,327.20 1327.2 USD
500825-SB
Watts Radiant Non-Programmable SunStat Core Thermostat 120/240V
138.80 138.80 138.8 USD

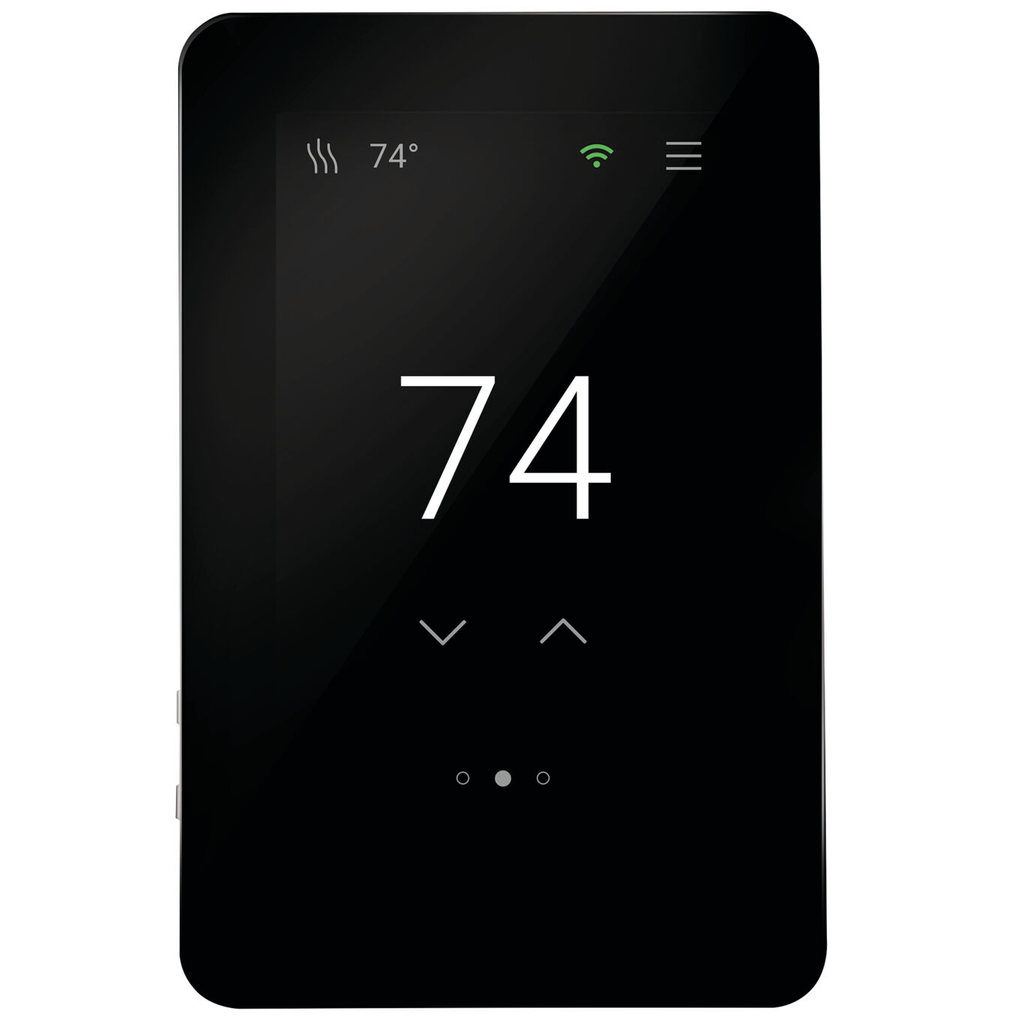

500900-SB
SunTouch Programmable Wi-Fi ConnectPlus Thermostat 120/240V
293.20 293.20 293.2 USD
400100
ProMelt Smart Panel, 100 AMP
2,399.20 2,399.20 2399.2000000000003 USD
