SH15120082ST

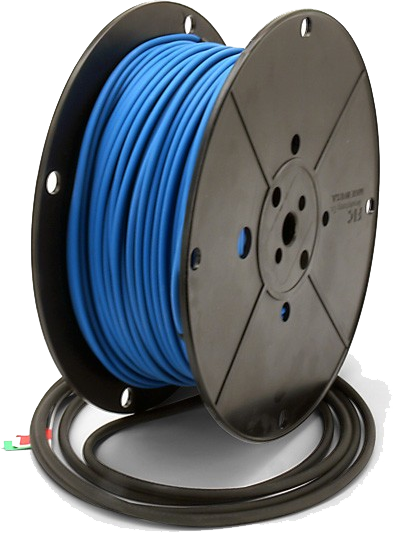

SlabHeat Cable Spool, 120V, 15W, 82 Sq.Ft. at 4 in. OC

    567.60 567.60 567.6 USD

    567.60

    This combination does not exist.

    Add to Cart

    SlabHeat Cable Spool, 120V, 15W, 82 Sq.Ft. at 4 in. OC



    Item Details:

    Length (Feet)241
    Coverage @ 4 in Spacing (sqft)82
    Output @ 4 in. Spacing15 W/sqft (51 BTUh/sqft)
    Coverage @ 6 in Spacing (sqft)122
    Output @ 6 in. Spacing10 W/sqft (34 BTUh/sqft)
    Supply Voltage (VAC)120
    Current Draw (Amps)10.3
    Resistance (Ohms)9-12
    Power Lead10' Long, 14 ga.
    Outer JacketPolyurethane
    Ground PlaneFull Coverage Braided Copper
    InsulationETFE
    Heating ElementsDual, Copper
    Bend Radius1 in.
    Max Exposure Temp194 F
    Min Installation Temp50 F

    SlabHeat Electric Indoor Slab Heating

    Enjoy the simplicity of electric indoor floor heating and turn cold concrete floors into a welcoming comfort. SlabHeat is ideal for basements, garages, sunrooms, offices, warehouses, and countless other interior slab projects.

    Operating a SlabHeat system couldn't be easier. Simply connect a SunStat Control or Relay directly to the SlabHeat cable with either 120 or 240 VAC line power. Each SunStat automatically turns the system on and off when needed.

    What Is Electric Slab Heating?

    SlabHeat is an electric heating cable used solely for indoor applications. It is perfect for new construction or remodeling projects.

    Installation

    • Can be installed in a slab cap, a new slab or over an existing slab.
    • Cable can be spaced depending on your warming needs.

    Technical

    • Single point connection.
    • Available in 120VAC and 240VAC

    1. SlabHeat CablePolyurethane outer jacket
    2. Foil shield
    3. Braided copper ground plane
    4. High temp ETFE element covering
    5. Oxygen-free copper alloy heating elements
