PT032121-1200

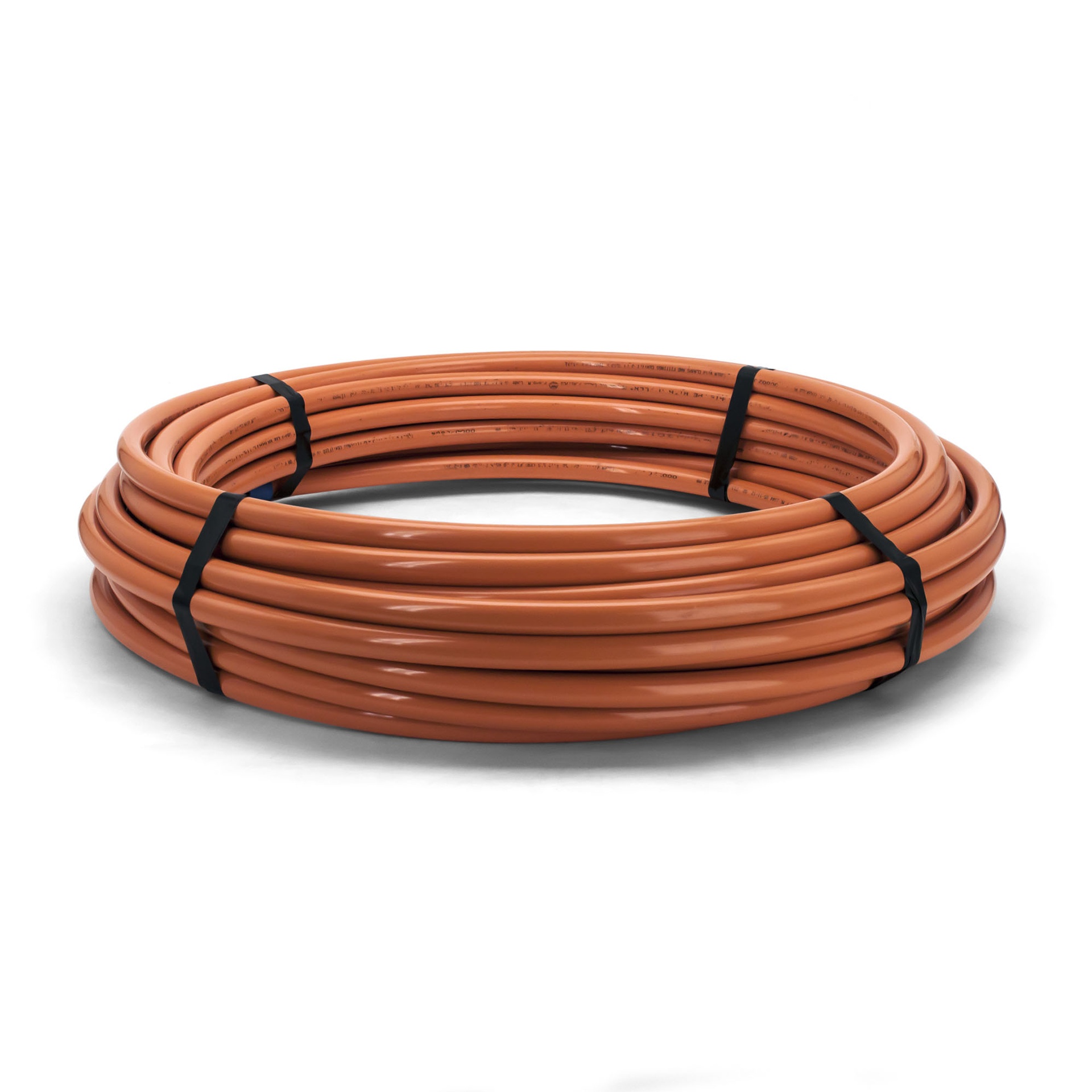

3/4 in.Watts Radiant RadiantPERT x 1200 ft. Coil

    1,471.06 1,471.06 1471.06 USD

    1,471.06

    This combination does not exist.

    Add to Cart

    3/4 in.Watts Radiant RadiantPERT x 1200 ft. Coil



    Technical Information:

    Nominal ID3/4 in.
    OD.875 in.
    Wall Thickness.097 in.
    Avg. ID.671 in.
    Bend Radius4.375 in.
    Volume gal/100 ft.1.89 gal.
    Length1200 ft.
    MaterialRadiant PERT
    ManufacturerWatts Radiant
    Operating Temperature & Pressure180 deg F @ 80 psi
    Operating Temperature & Pressure73.4 deg F @ 160 psi

    RadiantPERT | Polyethylene Raised Temperature Tubing with Oxygen Barrier - Recyclable Radiant Tubing recycle

    RadiantPERT polyethylene raised temperature (PE-RT) tubing is constructed with five layers of material, giving it significant strength. The core and outermost layer are PE-RT, and sandwiched in the middle is an integral ethylene vinyl alcohol (EVOH) oxygen barrier. At the same time the five-layer tubing is more flexible and easier to install than other piping materials used in hydronic radiant heating, cooling, snow melting, and distribution piping applications.


    RadiantPERT is manufactured with Dowlex™ 2344, which offers high temperature resistance and long life without cross-linking. The tubing has ratings up to 180°F (82°C) at 80 psi, and the EVOH barrier limits oxygen diffusion through the walls of the tubing to less than 0.10/m3/day at 104°F (40°C) water temperature.

    RadiantPERT uses the same fast and reliable Watts Radiant connection systems that have been used with PEX for years, including CinchClamps™ stainless steel connectors, CrimpRings™ precision-formed, ductile copper connectors, and T-20 compression fittings.

    The recyclable RadiantPERT tubing is certified to ASTM F2623 for PE-RT SDR 9 Tubing by NSF and CSA, and all RadiantPERT products are backed by a comprehensive 25-year warranty from Watts Radiant.
