PH-FT-PPP556
Fitting, Tee, 3/4" PEX x 3/4" PEX x 1" PEX
PH-FT-PPP556
Fitting, Tee, 3/4" PEX x 3/4" PEX x 1" PEX
Fitting, Tee, 3/4" PEX x 3/4" PEX x 1" PEX

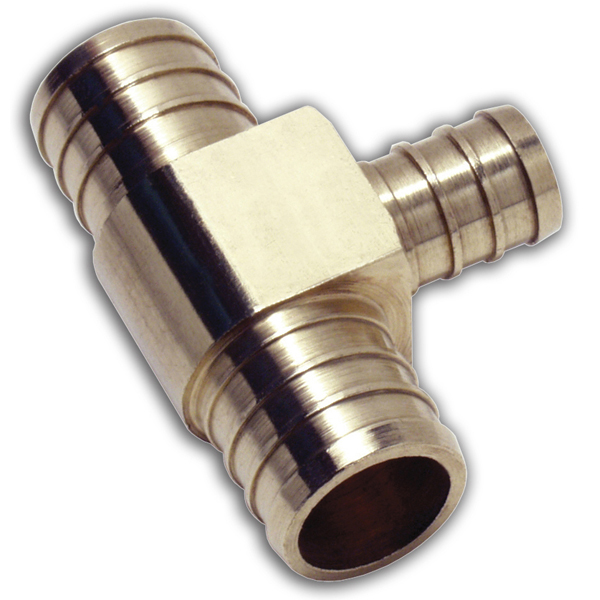

This crimp tee is used to make a three way connection between radiant heating PEX tubing. This 3/4 crimp by 3/4 crimp by 1/2 crimp branch tee is made of brass and must be joined to the PEX tubing using a copper crimp ring or stainless steel Cinch Clamp to form a fast, reliable, and permanent seal.
Brass
Used for three way connection between SDR-9 PEX pipe
For connecting PEX to PEX
Provides leak proof seal
Specifications | |
|---|---|
Inlet Connection Size | 3/4 IN |
Inlet Connection Size-Metric | 19 MM |
Inlet Connection Type | Crimped |
Maximum Working Pressure-BAR | 6.90 |
Maximum Working Pressure-PSI | 100 |
Maximum Working Temperature-Celsius | 82.00 |
Maximum Working Temperature-Fahrenheit | 180 |
Minimum Temperature - Celsius | 1.70 |
Minimum Temperature-Fahrenheit | 35 |
Outlet Connection Size | 3/4 IN |
Outlet Connection Type | Crimped |
Series | Crimp Tees |
Suitable for Gas Service | No |
Tee Type | Standard |
