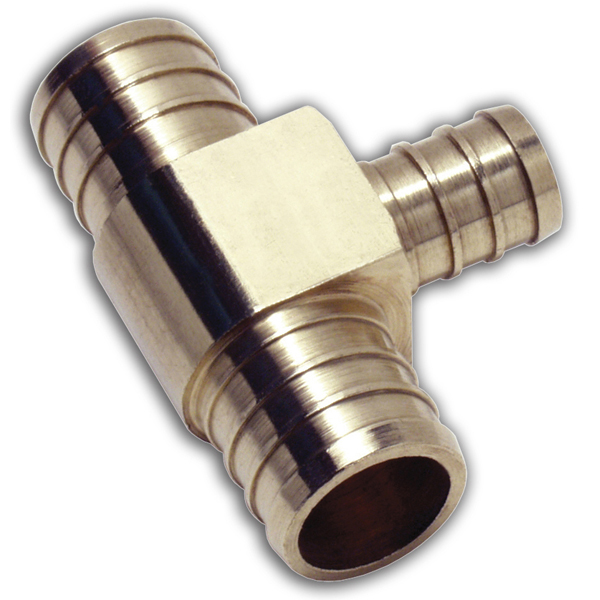

Fitting, Tee, 3/4" PEX x 3/4" PEX x 1" PEX
This crimp tee is used to make a three way connection between radiant heating PEX tubing. This 3/4 crimp by 3/4 crimp by 1/2 crimp branch tee is made of brass and must be joined to the PEX tubing using a copper crimp ring or stainless steel Cinch Clamp to form a fast, reliable, and permanent seal.
Brass
Used for three way connection between SDR-9 PEX pipe
For connecting PEX to PEX
Provides leak proof seal
Specifications
Inlet Connection Size
3/4 IN
Inlet Connection Size-Metric
19 MM
Inlet Connection Type
Crimped
Maximum Working Pressure-BAR
6.90
Maximum Working Pressure-PSI
100
Maximum Working Temperature-Celsius
82.00
Maximum Working Temperature-Fahrenheit
180
Minimum Temperature - Celsius
1.70
Minimum Temperature-Fahrenheit
35
Outlet Connection Size
Outlet Connection Type
Series
Crimp Tees
Suitable for Gas Service
No
Tee Type
Standard
