Description

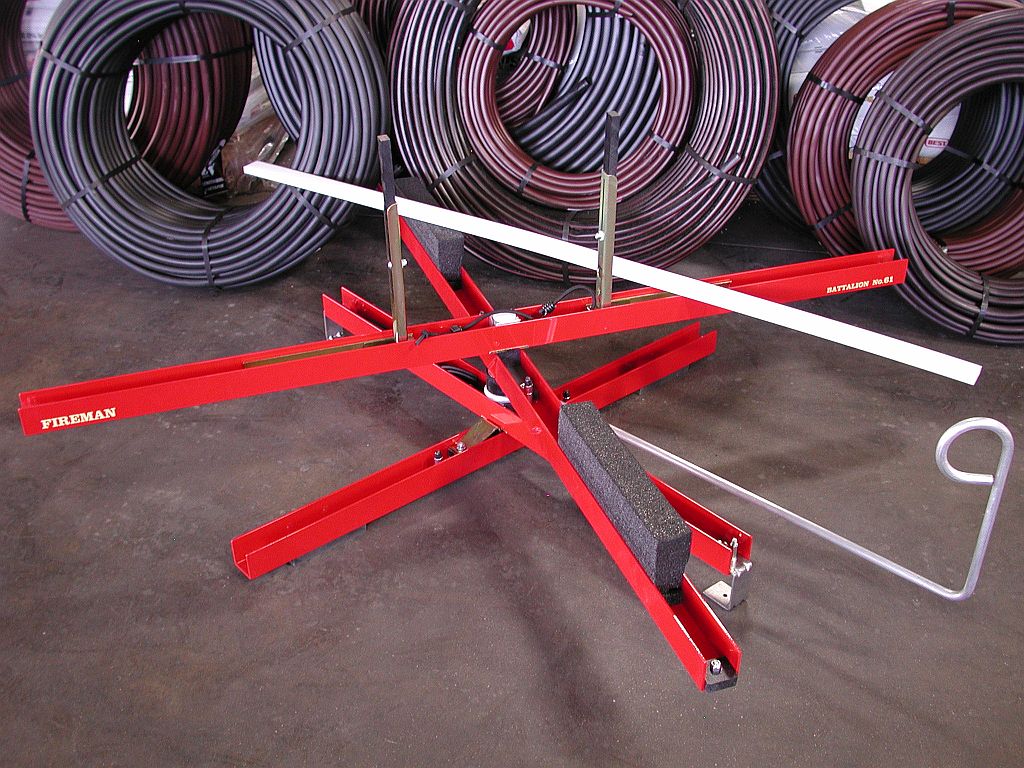

Battalion Tubing Unwinder
FEATURES:

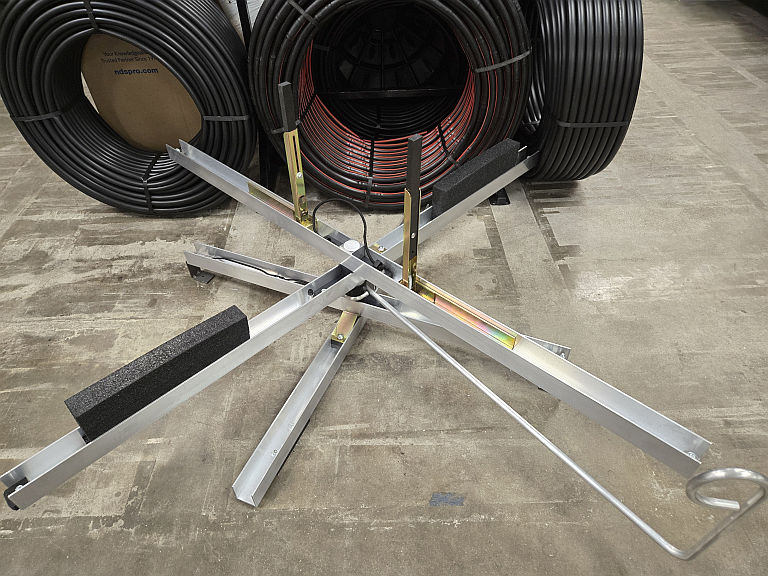

- Quick set up with self-locking arms and legs

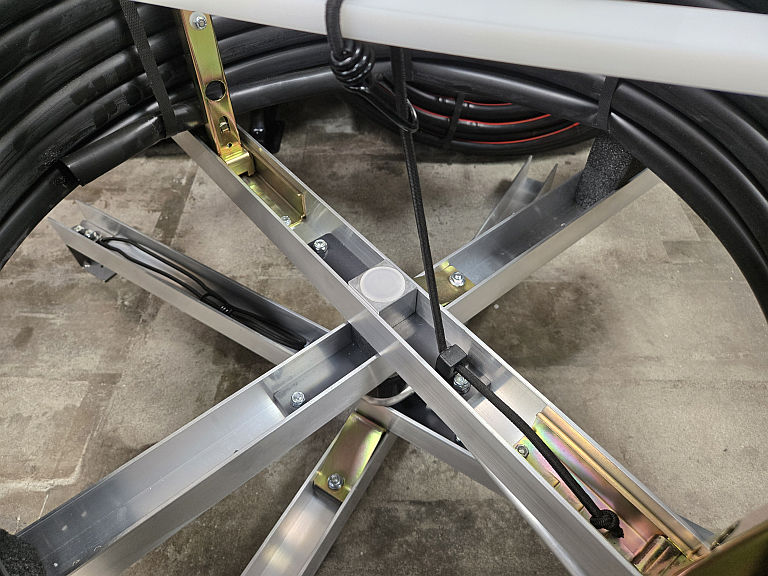

- Easy self-locking adjustable inner tube guides
- ‘Smart load’ tube side-loading capability to prevent back injuries and allow one man operation

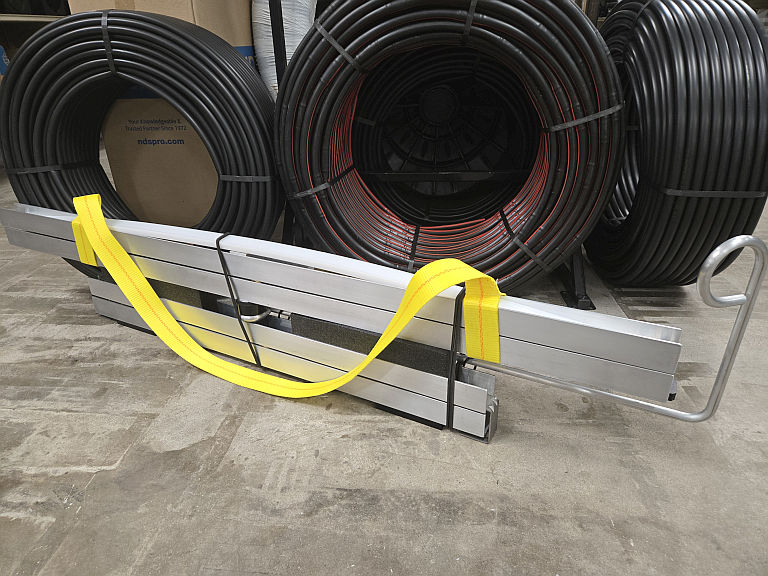

- Quick de-mounting and compact design for storage and easy transport (carry strap included)
- Rugged, reliable design for trouble free use and minimal tool maintenance requirements
SPECIFICATIONS:
Material: 6061 T6 Aluminum Channel; zinc chromate plated steel; stainless steel; UHMWPE plastic
|
Tool dimensions:
|
Length 59”
|
Height 16”
|
Width 2.75”
|
Weight 23 lbs.
|
|

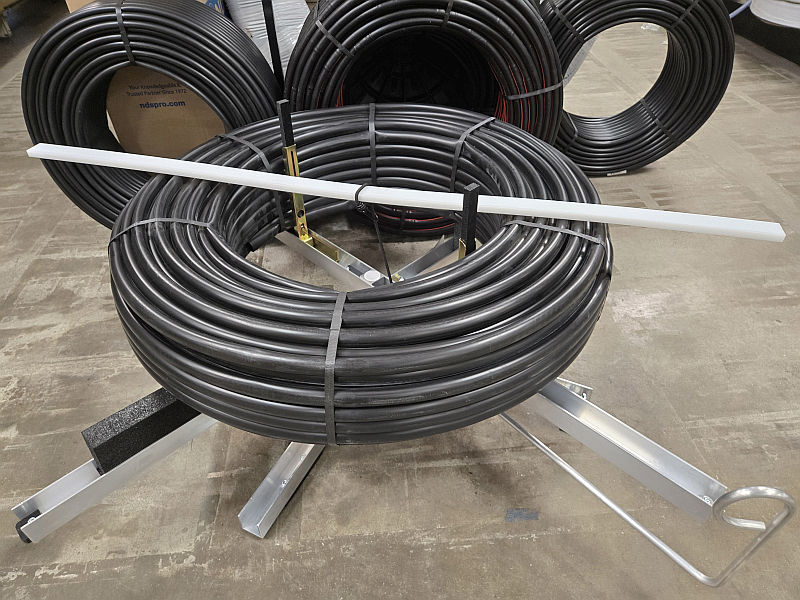

Tube loading capacity:
|
150 lbs | . |
Max Tube roll O.D.:
|
46” |
|
Max Tube roll height:
|
17.5” |
Minimum Tube roll I.D.:
|
16” |
 |
 |
 |
 |
Videos
Battalion No 61 demo
