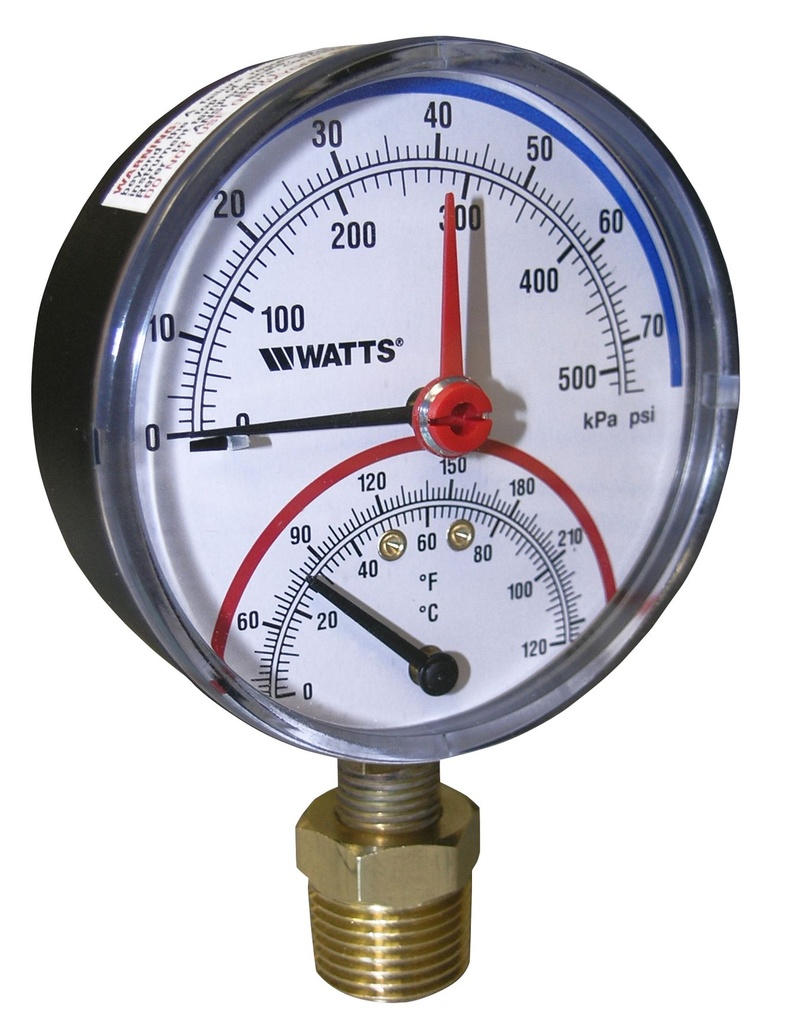

Watts Combination Temp/Pressure Gauge, 32 deg–248 degF/0–50 PSI

    52.79 52.79 52.79 USD


    This combination does not exist.

    Add to Cart

    Watts Combination Temp/Pressure Gauge, 32 deg–248 degF/0–50 PSI


    Working Temperature60°F to 320°F (15.5°C to 160°C)
    Working Pressure0 – 50psi
    PortBottom Entry, 1/2 in. NPT

    Series LFDPTG-1 Bottom Entry Combination Pressure/Temperature Gauges

    Dial Sizes: 3"
    These gauges combine a graduated temperature gauge and pressure gauge in ONE unit! Features metal construction for ruggedness. An ingenious self-sealing 1/2 in. MPT brass well is included so minimal system fluid is lost if the gauge is ever removed from the system. A manually-adjustable pointer can be used to track temperature or pressure changes on a 3" Dial Face.


    • Black enamel steel case

    • Kostil polymer window

    • Copper alloy Bourdon pressure element

    • Bimetal spiral spring temperature element

    • Tin alloy welding

    • 1/2" Lead Free* Brass NPT

    • Pressure gauge ASME Type “B” accuracy
