656414

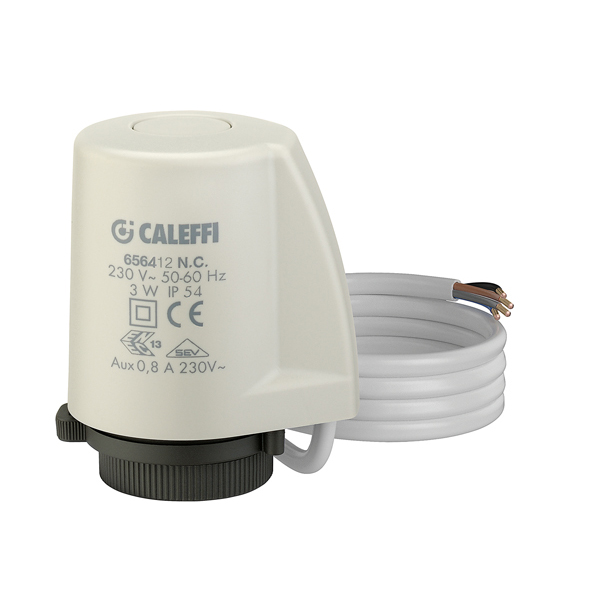

Caleffi Thermo-Electric Actuator 24v w/microswitch
Thermo-Electric Manifold Actuator
Function
The thermo-electric actuator, mounted to a zone valve or manifold, allows automatic shut-off of the medium under the control of a room thermostat or electrical switch. The 6564 series features low current draw, ideal during the start-up phase.
It is equipped with a valve opening/closing indicator, and a quickcoupling system with a retainer clip adapter for easy installation.
It features NEMA 5 protection allowing upside-down installation.
Item Details:
| Protection Class | NEMA 3 (IP54) |
| Power supply 24V AC/DC | |
| Initial current draw | ? 250 mA |
| Power Consumption | Holding 3 W Inrush 6 VA |
| Rating of micro-switch contacts | 5 A (24 V) |
| Wire Lead Connection | 31.5 in. |
| Power Supply: | 24 V AC/DC |
| Initial current draw: | 250 mA |
| Power consumption: | |
| Holding: | 3 VA |
| Inrush: | 6 VA |
| Rating of micro-switch contacts: | 5 A (24 V) |
| Wire Lead Connection | 31.5 in. |
| Microswitch | Yes |
| Conductors | 4 |
