Caleffi Thermoelectric Actuator 24v

    60.86 60.86 60.86 USD


    This combination does not exist.

    Add to Cart

    Caleffi Thermoelectric Actuator 24v

    Item Details:

    Protection ClassNEMA 3 (IP54)
    Power supply 24V AC/DC
    Initial current draw? 250 mA
    Power ConsumptionHolding 3 W Inrush 6 VA
    Rating of micro-switch contacts5 A (24 V)
    Wire Lead Connection31.5 in.
    Power Supply: 24 V AC/DC
    Initial current draw: 250 mA
    Power consumption:
    Holding: 3 VA
    Inrush: 6 VA
    Rating of micro-switch contacts: 5 A (24 V)
    Wire Lead Connection31.5 in.

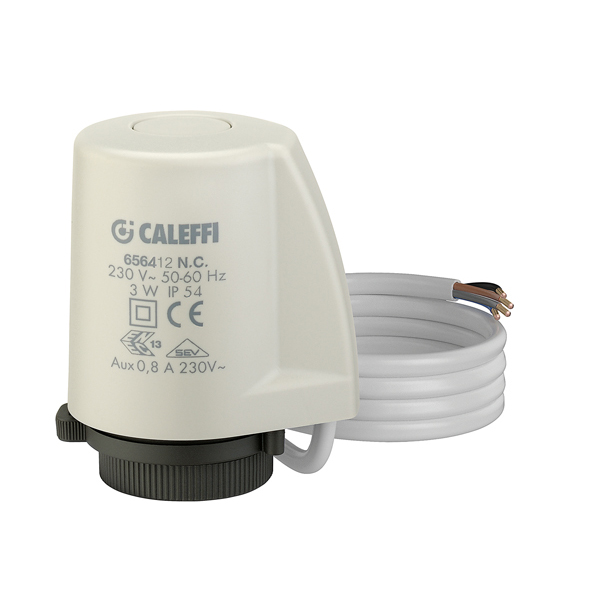

    Thermo-Electric Manifold Actuator


    The thermo-electric actuator, mounted to a zone valve or manifold, allows automatic shut-off of the medium under the control of a room thermostat or electrical switch. The 6564 series features low current draw, ideal during the start-up phase.

    It is equipped with a valve opening/closing indicator, and a quickcoupling system with a retainer clip adapter for easy installation.

    It features NEMA 5 protection allowing upside-down installation.
