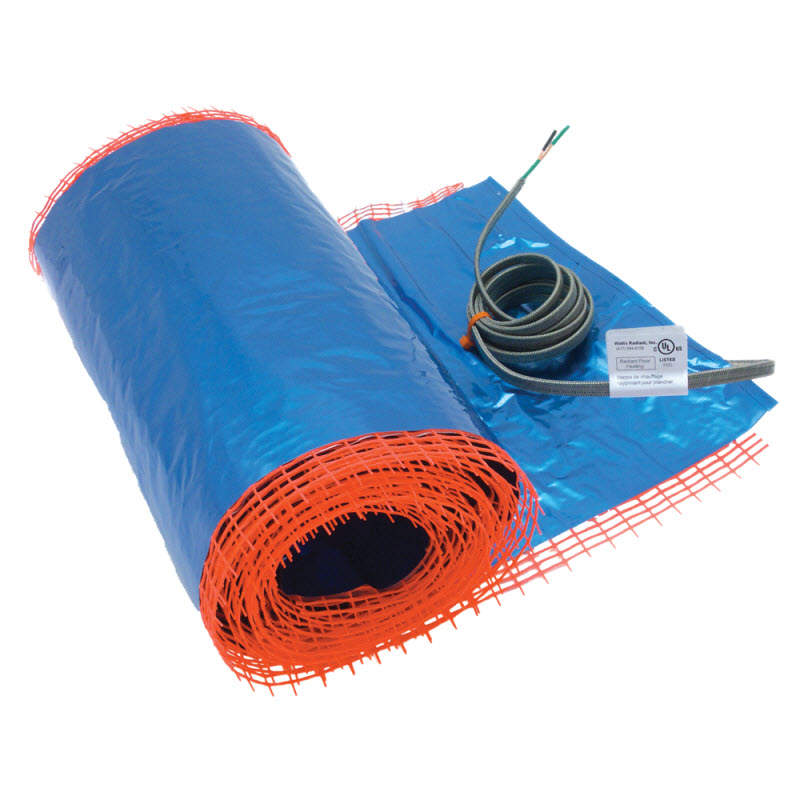

HeatWeave UnderFloor Mat, 16 ft. x 16 in., 120V

    452.50 452.50 452.5 USD


    This combination does not exist.

    Add to Cart

    HeatWeave UnderFloor Mat, 16 ft. x 16 in., 120V


    Amp. Draw1.7
    Supply Voltage120 VAC, 1-Phase
    Maximum Circuit Load20 amps (15 amps with SunStat Control)
    Wire Spacing2-3/4 in. (70 mm) o.c.
    Maximum Allowable Temperature194°F (90°C)
    EMFLess than 1 milligauss
    Heating ElementsOxygen-free copper or nickel-copper
    InsulationETFE Fluoropolymer
    Ground BraidStainless Steel
    Minimum Allowable Bend Radius1in. (25 mm)
    Length16 ft.
    Width16 in.
    Area Coverage21.3 sqft.

    Watts Radiant TapeMats

    Watts Radiant TapeMats are the safest and easiest-to-install heating mat in the industry. It is Listed by UL® for the U.S. and Canada, and tested by Tile Council of America for all residential and moderate commercial applications. All mats have the "S-pattern" wire construction and produce 12 watts/sq. ft. Watts Radiant offers the largest selection of mats in the industry with over 40 sizes manufactured in lengths covering up to 180 sq. ft. - with one mat!

    Consider The Benefits...

    • The industry's first thin, open-weave construction allows thin-set or self-leveling mortar to flow through the mat and easily bond with the underlying material. This one-step application adds only 1/8 in. thickness over a normal tile installation.

    • The industry's first single power lead construction makes mats easy to install and simpler to connect to the control.

    • The industry's highest-quality heating wire using ETFE high-temperature insulation, PEX jacket, and oxygen-free copper alloys for corrosion resistance, temperature resistance, abrasion resistance, and longevity.

    • The industry's first twin-wire construction means ultra-low EMF.

    • 120-VAC and 240-VAC models available for small residential to large commercial applications.

    • The industry's only shielded and fully grounded 10-ft. power lead provides safety and jobsite durability (longer lengths available on request). Power leads are color-coded for 120 VAC or 240 VAC.

    Heated floors, the easy way

    • Order mat for your exact floor plan.

    • Simply unroll to fit the space.

    • No cuts or turns required.

    Features & Benefits

    • Quicker, simpler, easier installation - Custom TapeMat® is pre-shaped to fit any area.

    • Open weave TapeMat® allows for a 1-step application with thin-set or self-leveler.

    • Easy alterations if room dimensions change.

    • Simple to adjust for curves, angles, & cut-outs.

    • Double-sided tape adheres to subfloor for faster layouts.

    • UL listed at 12 Watts/square foot.
