ZB-A-7

Watts Thermal Pro Standard 7 Circuit Stainless Steel Manifold Panel with Actuators

This product is no longer available.

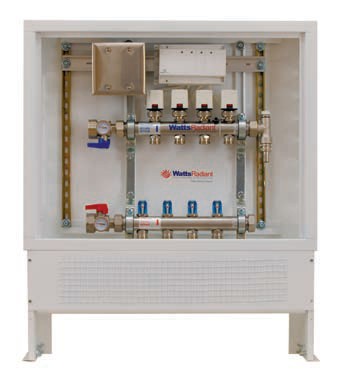

Watts Thermal Pro Standard 7 Circuit Stainless Steel Manifold Panel with Actuators

Specifications:

Height29.5 in.
Width41.5 in.
Depth4.5 in.
End 1 Connection TypeNPT
End 1 Connection Type1 1/4 in.
End 2 Connection TypeNPT
End 2 Connection Size1 1/4 in.

Thermal Pro Standard Manifold with Actuators

Description

The Thermal Pro Standard Manifold Panel is used when the manifold must serve multiple rooms with a dedicated supply pump in the boiler room. This manifold is neatly housed in a powder-coated steel enclosure with latching door. The enclosure can be mounted on a wall or recessed between studs.

The Thermal Pro Standard Manifold Panel is designed to serve multiple zones, and is available with 2 to 12 circuits.

29.5 in. high x 41.5 in. wide x 4.5 in. deep

Each panel includes:

  • 1 in. Stainless Steel manifold
  • Supply and return manifold trunk ball valves
  • Supply and return manifold mini temperature gauges
  • Vent/purge assembly on supply manifold
  • Flow meters (0-2gpm) on each circuit
  • Balancing valves on each circuit
  • White powder-coated steel enclosure with cover
  • Zone Actuators on eachcircuit
