ZB-A-10

https://www.pexheat.com/web/image/product.template/15480/image_1920?unique=4f54bed

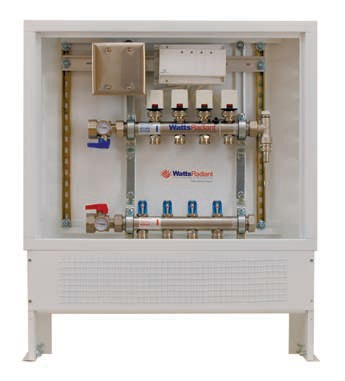

Watts Thermal Pro Standard 10 Circuit Stainless Steel Manifold Panel with Actuators

This product is no longer available.

ZB-A-10

Watts Thermal Pro Standard 10 Circuit Stainless Steel Manifold Panel with Actuators

This product is no longer available.

Watts Thermal Pro Standard 10 Circuit Stainless Steel Manifold Panel with Actuators

Specifications:

Height29.5 in.
Width41.5 in.
Depth4.5 in.
End 1 Connection TypeNPT
End 1 Connection Type1 1/4 in.
End 2 Connection TypeNPT
End 2 Connection Size1 1/4 in.

Thermal Pro Standard Manifold with Actuators

Description

The Thermal Pro Standard Manifold Panel is used when the manifold must serve multiple rooms with a dedicated supply pump in the boiler room. This manifold is neatly housed in a powder-coated steel enclosure with latching door. The enclosure can be mounted on a wall or recessed between studs.

The Thermal Pro Standard Manifold Panel is designed to serve multiple zones, and is available with 2 to 12 circuits.

29.5 in. high x 41.5 in. wide x 4.5 in. deep

Each panel includes:

  • 1 in. Stainless Steel manifold
  • Supply and return manifold trunk ball valves
  • Supply and return manifold mini temperature gauges
  • Vent/purge assembly on supply manifold
  • Flow meters (0-2gpm) on each circuit
  • Balancing valves on each circuit
  • White powder-coated steel enclosure with cover
  • Zone Actuators on eachcircuit
