Z55

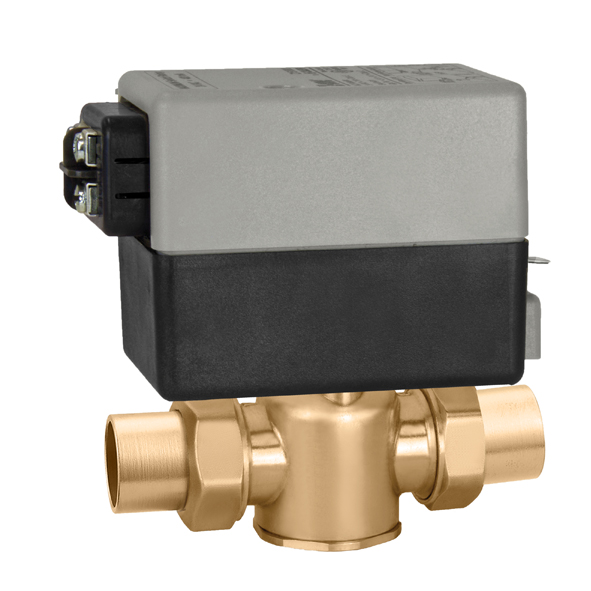

Caleffi Z-One 2-Way Zone Valve, 3/4 in. Sweat
Z55
Caleffi Z-One 2-Way Zone Valve, 3/4 in. Sweat
Caleffi Z-One 2-Way Zone Valve, 3/4 in. Sweat
Details
Item Details:
Max body pressure | 150 psi. |
Max temp | 200 ° |
Description
- 2-way motorized zone valve (with screw terminal connection) With auxiliary microswitch.
- UL873, cULus Listed & CE. UL 1995 sec. 18 air plenums and ducts.U.S. Patent 7,048,251.
- Normally closed actuator: Z151000.
- Spring return. Auxiliary micro-switch.
- Maximum working pressure: 300 psi.
- Medium temperature range: 32–240 °F.
- Electric supply: 24 V (AC).
- Power consumption: 7 VA.
- Auxiliary microswitch contact rating (24 V): 0.4 A.
- Maximum percentage of glycol: 50 %.
- Medium: water, glycol solutions, vapor (max. 15 psi).
- △p max.: 30 psi.
- Cv: 3.5 gpm.
