ST838-UTILITY-5

ST838-UTILITY-5

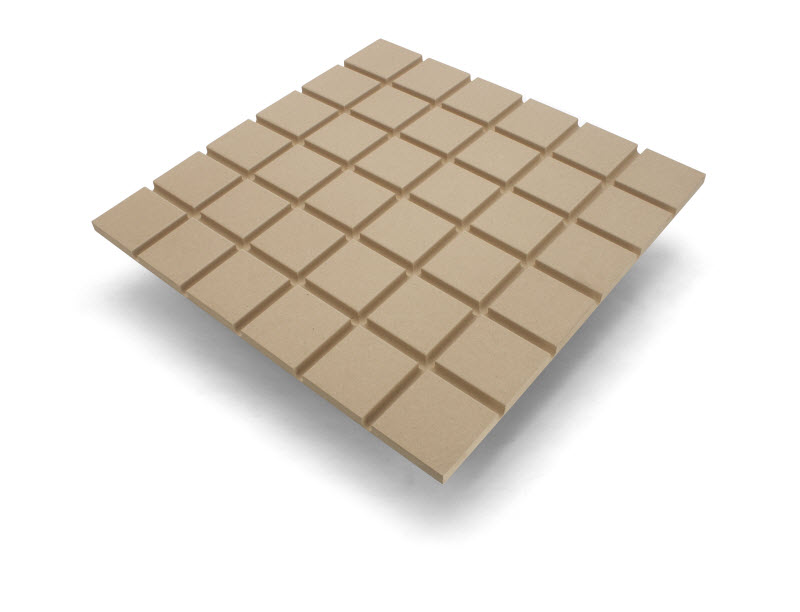

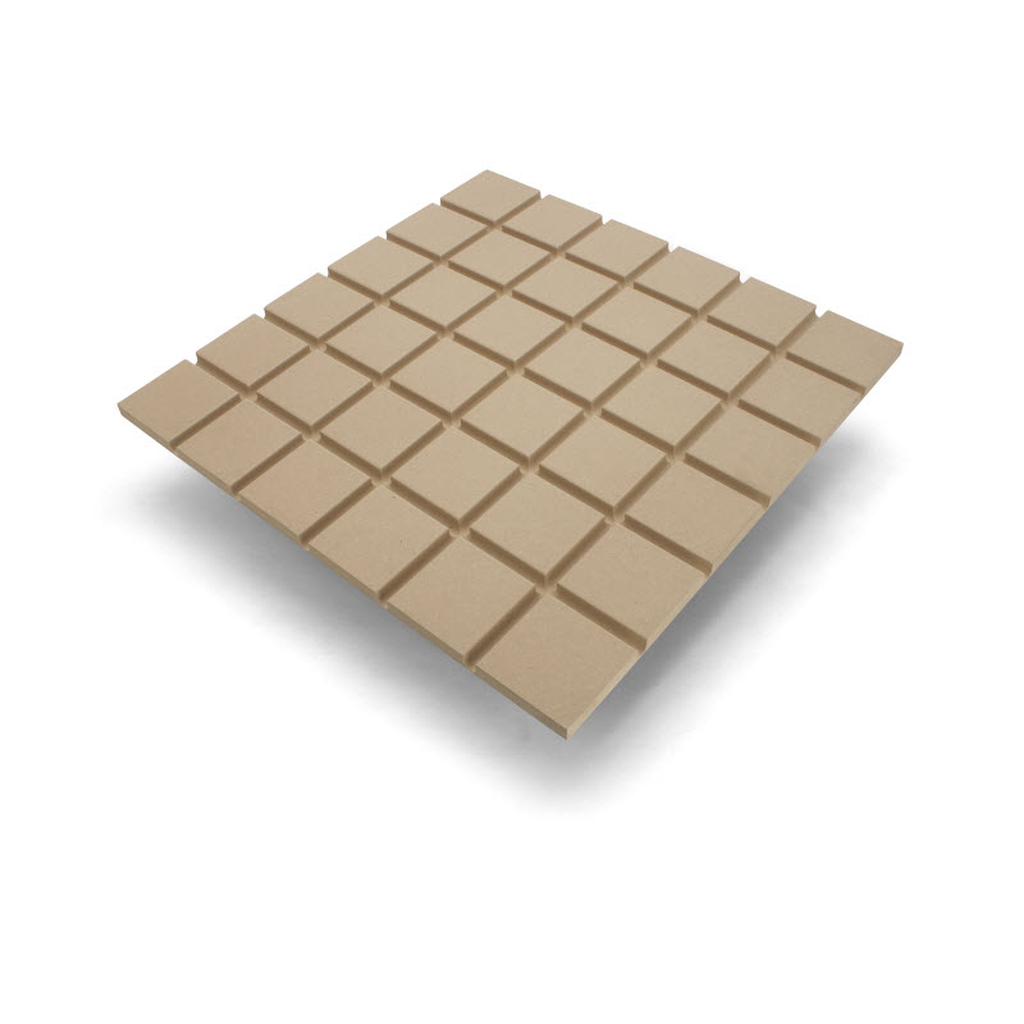

SmartTrac Hydronic Radiant Floor Heating Solution

Watts Radiant’s SmartTrac™ is a non-structural, modular board designed for subfloor, wall and ceiling radiant heating and cooling applications. It is manufactured from 5/8" (15.88 mm) thick MDF (medium density fiberboard) and is designed for use with 3/8" (9.5 mm), ASTM F876 PEX or ASTM F2623 PERT.

$ 313.51 $ 313.51

  • Dimensions
  • Material
  • Density
  • Screw Holding, Face
  • Screw Holding, Edge
  • Flame Spread Rating
  • Moisture Content
  • Thickness Swell
  • Linear Expansion
  • Internal Bond
  • Tube Spacing
  • Approvals
Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us
Dimensions: 24 in. x 24 in. x 5/8 in.
Material: MDF (medium density fiberboard)
Density: 46 lb/ft3
Screw Holding, Face: 225 lbs
Screw Holding, Edge: 200 lbs
Flame Spread Rating: Class 3
Moisture Content: 4 - 6%
Thickness Swell: 5%
Linear Expansion: 0.3%
Internal Bond: 130 lb/in2
Tube Spacing: 4 in. O.C.
Approvals: Awarded CARB ULEF Exemption.
Documents
Watts SmartTrac Brochure Watts SmartTrac Manual Watts SmartTrac Submittal https://youtu.be/Mc7ThW4ERIk https://youtu.be/bkGA-eX_G_E

Watts Radiant SmartTrac Utility SubFloor Panel, 2 ft. x 2 ft. for 3/8 in. Tubing, Pack of 5
