ZB-N-7

Thermal Pro Standard Zone Panels - Basic Manifold

Description

The Thermal Pro Standard Manifold Panel allows you to serve two or more different zones from one manifold location. The panel is available with 2 to 12 circuits and comes with the individual circuit actuators and zone control all factory-wired; one actuator to one zone. Controlling more than one zone with a single thermostat is as easy as jumping the appropriate terminals in the control. See the Zone Valve Actuator Control instructions for further details.

The Thermal Pro Standard Manifold Panel package is normally supplied with water by a field-installed zone pump, and is neatly housed in a powder-coated steel enclosure with latching door. The enclosure can be mounted on a wall or recessed between studs.

29.5 in. high x 41.5 in. wide x 4.5 in. deep

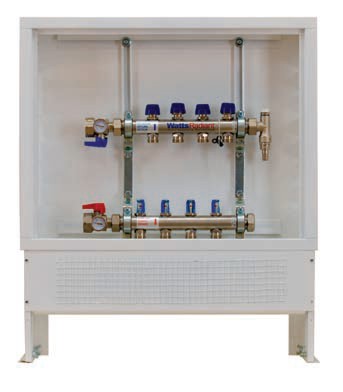

Each Thermal Pro Standard Zone Panels - Basic Manifold includes:

• 1 in. Stainless Steel manifold
• Supply and return manifold trunk ball valves
• Supply and return manifold mini temperature gauges
• Vent/purge assembly on supply manifold
• Flow meters (0-2gpm) on each circuit
• White powder-coated steel enclosure with cover
