ZC-N-6

ZC-N-6

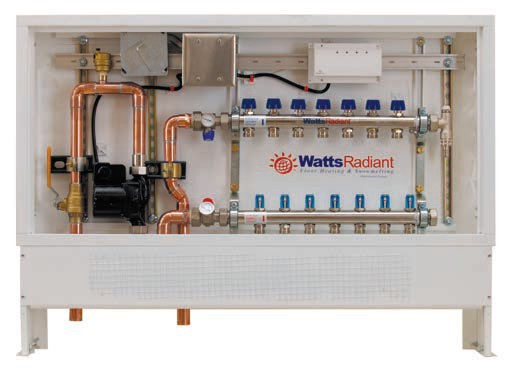

Thermal Pro Standard  Zone Panels - Manifold with Pump

Description

The Thermal Pro Standard Zone panel is used when the manifold does not have a dedicated supply pump in the boiler room. This manifold is neatly housed in a powder-coated steel enclosure with latching door. The enclosure can be mounted on a wall or recessed between studs.

The Thermal Pro Standard Zone Panel is designed to serve one zone, and is available with 2 to 7 circuits.

29.5 in. high x 41.5 in. wide x 4.5 in. deep

Each panel includes:

  • Watts Radiant zone pump
  • Automatic air vent valve
  • 1 in. Stainless Steel manifold
  • Supply and return manifold trunk ball valves
  • Supply and return manifold mini temperature gauges
  • Vent/purge assembly on supply manifold
  • Flow meters (0-2gpm) on each circuit
  • Balancing valves on each circuit
  • White powder-coated steel enclosure with cover
$ 3,500.05 $ 3,500.05

  • Width
  • Depth
  • Height
  • End 2 Connection Type
  • End 1 Connection Type
  • End 2 Connection Size
Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us
Width: 41.5 in.
Depth: 4.5 in.
Height: 29.5 in.
End 2 Connection Type: NPT
End 2 Connection Size: 1 1/4 in.

Watts Thermal Pro Standard 6 Circuit Stainless Steel Manifold with Zone Pump Panel
