Watts Boiler Header Module
Complete Packages to Purge, Quiet, Fill, and Service Your Hydronic
System Out of the box
Watts Boiler Header Module delivers components that make following the
industry recommended near-boiler piping virtually foolproof. Boiler
industry recommendations (system purge station, followed by an air
separator, followed by a service fitting) ensure the contractor correctly
pipes a hydronic installation — quickly, easily, and neatly in a compact
job space.

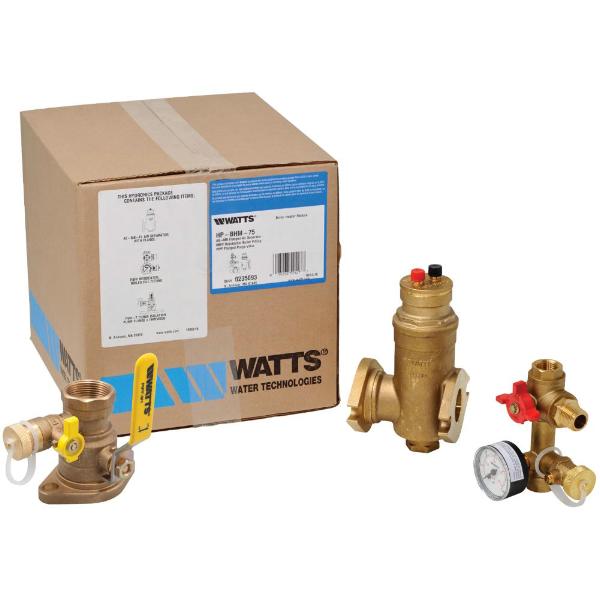

Components:
AS-MBFL Air Separator - The AS-MB Air Separator employs
rugged, corrosion-resistant coalescing media and a Duo Vent air vent
assembly to provide microbubble air separation for a quieter heating
system. The unit is fully serviceable in the field and comes in a
flanged model designed to mate with the PIPF-T System Purge Station.
RBFF Service Fitting - Setting a new standard for fast and
easy service calls, the RBFF Service Fitting is connected below the
AS-MB Air Separator. The RBFF employs a unique 3-way ball valve for
isolation of the water pressure regulator and expansion tank from system
pressure. The RBFF Service Fitting’s drain port allows for unloading
pressure from the waterside of the expansion tank diaphragm for air
charge servicing and maintenance. Compared with traditional
installations, the RBFF’s one-piece construction eliminates up to 11
threaded joints.
1" NFT PIPF-T System Purge Station - During commissioning,
by closing the Series PIPF-T’s ball valve and connecting a hose to the
purge fitting, an installer can push all of the initial air out of the
system. PIPF-T replaces up to seven fittings with a single compact unit.
