VT-RP

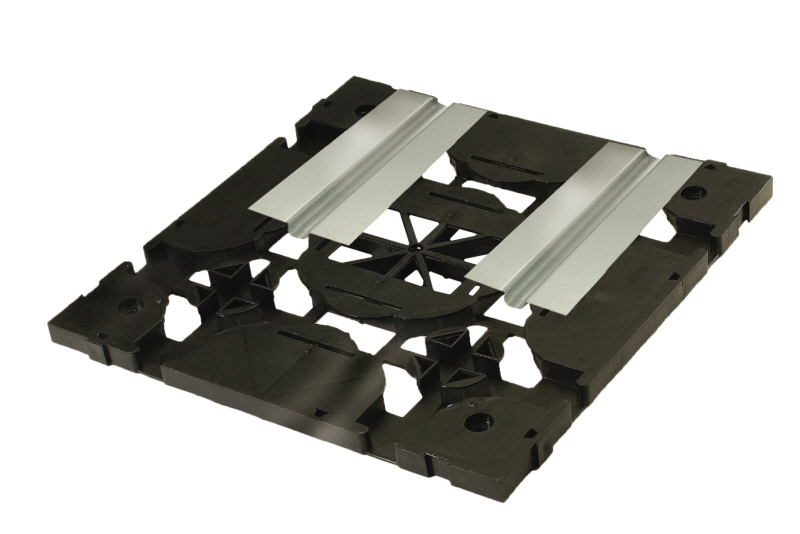

Legend VersaTherm Return Panel, 15.75 in. x 15.75 in., Individual Panel

    16.46 16.46 16.46 USD

    16.46

    This combination does not exist.

    Add to Cart

    Legend VersaTherm Return Panel, 15.75 in. x 15.75 in., Individual Panel



    Specifications

    Length15.75 in.
    Width15.75 in.
    Thickness.75 in.
    Return Panel BaseHigh Impact Polypropylene
    Return Panel Cover25 gauge Galvanized Steel
    Point Load165 psi @ 0.33 in. deflection (no cover; not structural)
    Compatibility1/2 in radiant tubing, ASTM F876 (PEX), ASTM F2623 (PE-RT), ASTM F1281 (PEX-AL-PEX)
    Case Qunatity20 panels

    VersaTherm™

    Unlike any radiant floor on the market

    The VersaTherm™ Floor System is an innovative, low-profile, high-output, snap-fit radiant panel system ideally suited for both new construction and renovation projects. Unlike any dry radiant system on the market, the panels snap together in minutes, saving significant labor costs. The 3/4 inch thick panels are pre-insulated and naturally water resistant- great for retrofits and basements. VersaTherm’s use of 1/2 inch tubing allows for greater circuit lengths. The tubing is 100% protected by metal and the entire surface transfers heat.

    Legend Return PanelKey Features:

    • Labor Saving − snaps together

    • 1/2 inch tubing− for longer circuit lengths

    • Tubing is protected against damage

    • Return Panels are pre-insulated − great for retrofits and basements

    • Naturally water resistant

    • Entire surface transfers heat

    • Return Panels are easily cut for tight installations

    • Tube spacing is 8 inches on center

    Calculate Quantity:

    Return Panels (VT-RP) Panel Size = 15.75 in. x 15.75 in. = (248) 1.72 sq. ft. (20 panels per box)

    NUMBER OF PANELS:

    _Project square footage__ x 0.117 = _Number of Main Panels(Round Up)

        EXAMPLE: 400 sqft x 0.117 = 46.8 or (47)

    NUMBER OF CASES:

    _Number of Main Panels needed__ ÷ 20 = _Number of Cases of needed_ (Round Up)

        EXAMPLE: 47 panels ÷ 0 = 9.4 or (10) boxes



    Legend VersaTherm Floor System Overview



    Legend VersaTherm Floor System Installation Guide
