TVS43-040

TVS43 DHW Control System 1 1/2 in. Valve

    1,950.00 1,950.00 1950.0 USD

    1,950.00

    This combination does not exist.

    Add to Cart

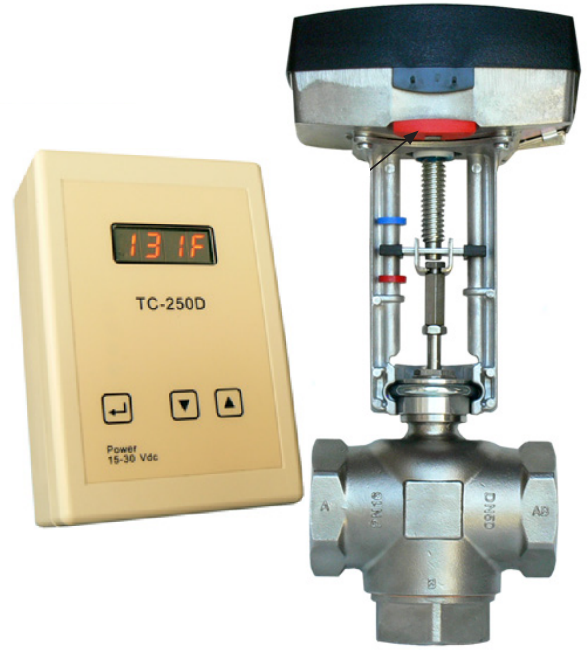

    TVS43 DHW Control System 1 1/2 in. Valve



    Specifications:

    ControlerTC250D
    Power Supply15 - 30 Vdc
    Power consumption75mA
    SensorSTP120-70
    Sensor sample rate10/ sec.
    Analog output (AO) Direct Acting0-10 or 2-10 Vdc
    Enclosure dimensions3 in.(W),4.25 in.(H),1.5 in.(D)
    ActuatorVM800
    Power supply24 Vac, 25 VA
    Control Signal Input0/2 - 10 Vdc
    Output16 Vdc to controller
    Stem force200 lb.
    Run time (for 3/4 in. stroke)20 seconds
    Cold inlet40 ° F - 80 ° F
    Hot inlet120 ° F - 205 ° F
    Outlet temp. range95 ° F- 140 ° F
    Valve Size1 1/2 in.
    Flow Coefficient CV29.0
    Flow Range GPM50 - 110

    THE CORE OF ANY PROFESSIONAL COMERCIAL DOMESTIC HOT WATER DISTRIBUTION INSTALLATION

    TVS43 is an Electronic Tempering Valve System used to control domestic hot water temperature in commercial installations.

    Buying a complete system or valve + actuator together is less than buying separate parts

    Features:

    • Very easy set up, default settings work in most systems
    • PI control algorithm
    • Low demand dead zone with adjustable activation point
    • High temperature alarm function
    • Fast sample rate of sensor input
    • Several valves can be installed in parallel, wired to one controller
    • The TVS43 is designed for use in systems with a hot water recirculating line and the pump running continuously

    Includes:

    • TC250D        PI Controller with LED readout
    • STP120-70    Fast Immersion Sensor
    • VM800          20 second Modulating Actuator
    • V43               Stainless Steel 3-way Valve 1 1/2 in.
