TVS43-025

TVS43-025

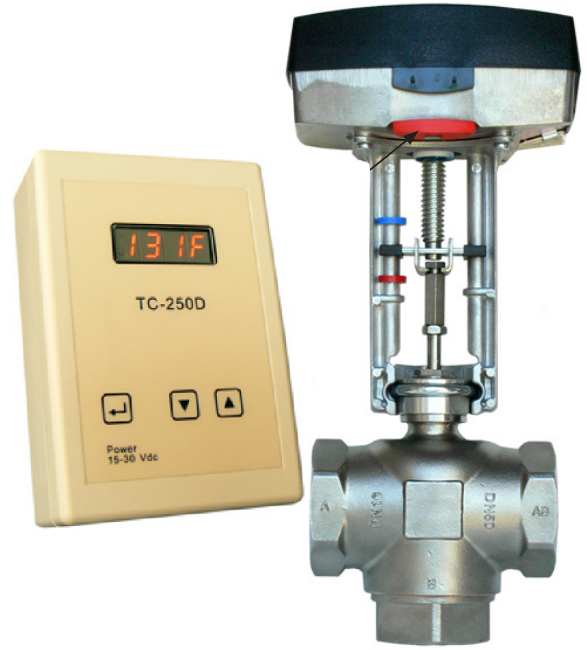

TVS43 DHW Control System 1 in. Valve

THE CORE OF ANY PROFESSIONAL COMERCIAL DOMESTIC HOT WATER DISTRIBUTION INSTALLATION

TVS43 is an Electronic Tempering Valve System used to control domestic hot water temperature in commercial installations.

Buying a complete system or valve + actuator together is less than buying separate parts

Features:

  • Very easy set up, default settings work in most systems
  • PI control algorithm
  • Low demand dead zone with adjustable activation point
  • High temperature alarm function
  • Fast sample rate of sensor input
  • Several valves can be installed in parallel, wired to one controller
  • The TVS43 is designed for use in systems with a hot water recirculating line and the pump running continuously

Includes:

  • TC250D        PI Controller with LED readout
  • STP120-70    Fast Immersion Sensor
  • VM800          20 second Modulating Actuator
  • V43               Stainless Steel 3-way Valve 1 1/2 in.
Factory Direct
$ 2,086.40 $ 2,086.40

30-day money back guarantee
  • Dimensions
  • Power Supply
  • Sensor
  • Manufacturer
  • Power supply
  • Sensor sample rate
  • Controler
  • Power Consumption
  • Analog output (AO) Direct Acting
  • Actuator
  • Control Signal Input
  • Output
  • Stem force
  • Run time (for 3/4 in. stroke)
  • Cold inlet
  • Hot inlet
  • Outlet temp. range
  • Valve Size
  • Flow Coefficient CV
  • Flow Range GPM
Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us
Dimensions: 3 in.(W),4.25 in.(H),1.5 in.(D)
Power Supply: 15 - 30 Vdc
Sensor: STP120-70
Manufacturer: Paxton
Power supply: 24 Vac, 25 VA
Sensor sample rate: 10/ sec.
Controler: TC250D
Power Consumption: 75mA
Analog output (AO) Direct Acting: 0-10 or 2-10 Vdc
Actuator: VM800
Control Signal Input: 0/2 - 10 Vdc
Output: 16 Vdc to controller
Stem force: 200 lb.
Run time (for 3/4 in. stroke): 20 seconds
Cold inlet: 40 ° F - 80 ° F
Hot inlet: 120 ° F - 205 ° F
Outlet temp. range: 95 ° F- 140 ° F
Valve Size: 1 in.
Flow Coefficient CV: 11.6
Flow Range GPM: 20 - 40

TVS43 DHW Control System 1 in. Valve
