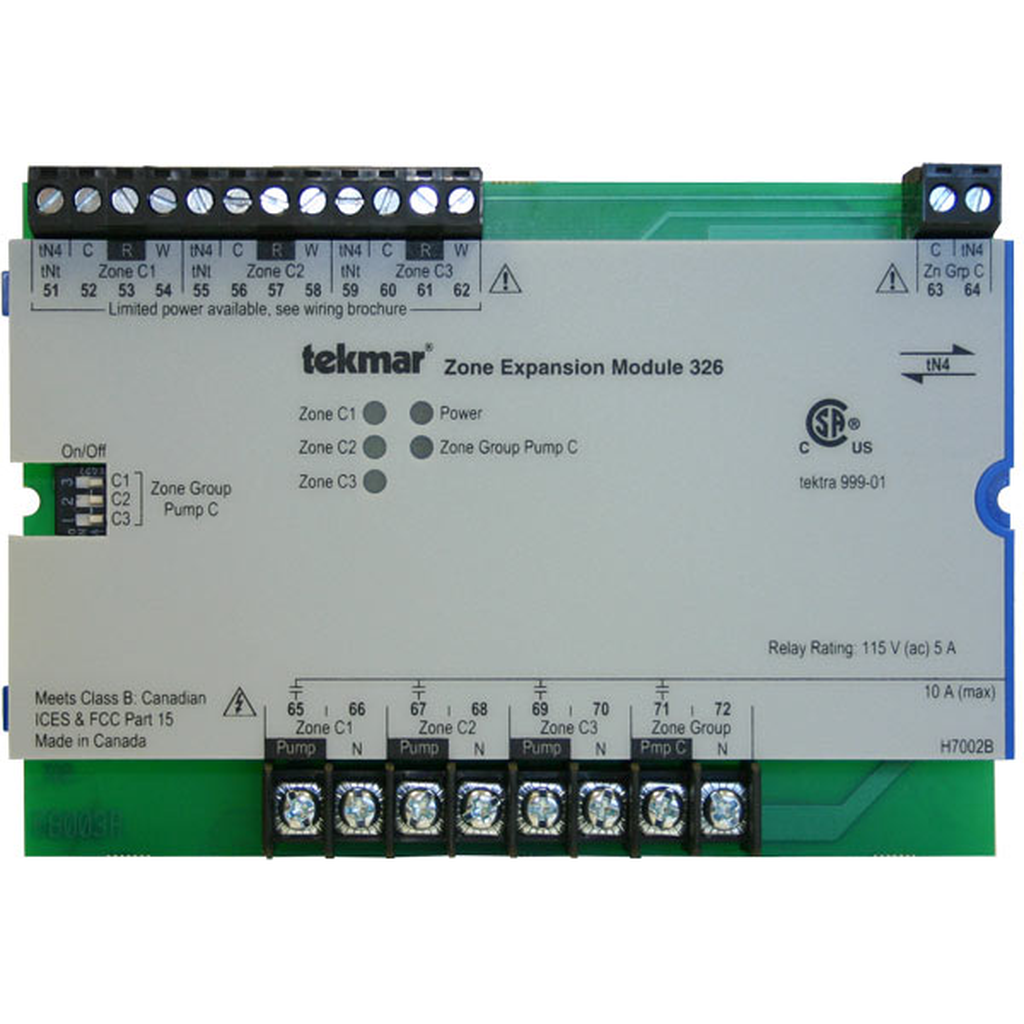

The tekmarNet® 4 Zone Expansion Module 326 is designed to provide
expansion for a zoning solution for heating systems. It can be used in
applications ranging from baseboard zones, to radiant heating manifolds.
This product expands the number of zones provided with a Zone Manager by
up to 3 more zone pumps. It is capable of providing power for up to 3
tekmarNet ® 4 or stand alone thermostats and energizing their respective
115 V (ac) zones, as well as providing a powered Zone Group Pump (powered
end switch) contact to enable an external device such as a manifold pump.
- tekmarNet® 4 compatible
- Three 115 V powered zone pump outputs
- One 115 V powered zone group pump output
- Simple wiring
- CSA C US Certified for use in USA and Canada
