561

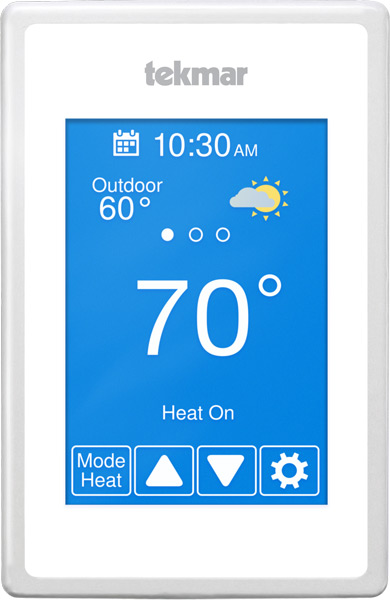

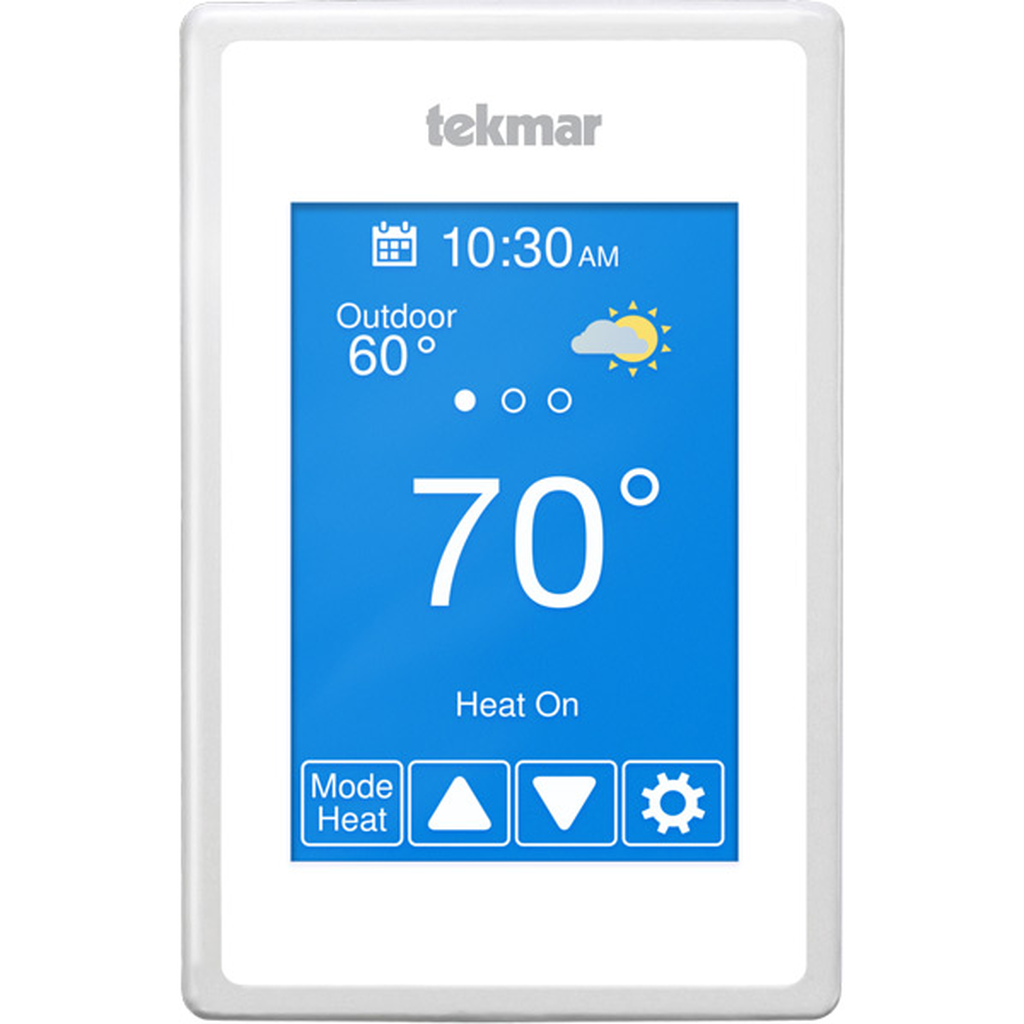

Tekmar WiFi Thermostat 561 - One Stage Heat

The WiFi Thermostat 561 provides precise temperature control of a one-stage heating system. When connected to the Internet, the Watts® Home mobile app allows the thermostat to be controlled remotely. A 7-day, 4-event programmable schedule is available and the early start feature automatically learns to heat up the room by the scheduled time. An Away mode is quickly and easily accessed to provide energy savings when the space is unoccupied. The thermostat supports radiant floor heating and optional floor sensors can be installed to enhance comfort and protect floor coverings.


Features


  • Mobile app for iOS and Android, supports optional floor sensor
  • Automatic software updates, outdoor temperature
  • Local weather, Email error and warning notifications
  • Time clock updated from Internet, 7 day programmable schedule
  • Away energy savings mode, early start
  • Energy monitoring
  • English/French/Spanish languages
  • 3.5 inch color touchscreen
  • Selectable background colors


Specifications

Agency ApprovalsMeets Class B: ICES & FCC Part 15
Ambient ConditionsIndoor use only, 32 to 122 degrees F (0 to 50 degrees C), RH less than or equal to 90 percent non-condensing
Control TypeMicroprocessor control, this is not a safety (limit) control
Dimensions4-5/8" H x 3" W x 15/16" D (118 x 76 x 24 mm)
Enclosure MaterialWhite PVC plastic
Enclosure NEMA RatingNEMA 1
MarketsSingle-Family Homes
Power Supply15 to 30 V (ac/dc), 2 VA, Class 2
Relay30 V (ac/dc), 2 A, Class 2 circuits
SensorNTC thermistor, 10 k ohms at 77 degrees F (25 degrees C plus / minus 0.2 degrees C) Beta = 3892

Factory Direct
244.17 244.17

30-day money back guarantee
  • Manufacturer
  • Series
  • Sensor
  • Approvals
  • Enclosure
  • Control
  • Warranty
  • Ambient Conditions
  • Relay
  • Mobile app
  • Communications
  • Shipping Weight
  • Dimensions
  • Power supply
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Manufacturer: Tekmar
Series: 561 WiFi Thermostat One Stage Heat
Sensor: NTC thermistor, 10 kΩ @ 77°F (25°C ±0.2°C) β=3892
Approvals: Meets Class B: ICES & FCC Part 15
Enclosure: White PVC plastic, NEMA type 1
Control: Microprocessor control
Warranty: Limited 3 Year
Ambient Conditions: Indoor use only, 32 to 122°F (0 to 50°C), RH ≤90% non-condensing
Relay: 30 V (ac/dc), 2 A, Class 2 circuits
Mobile app: Apple iOS 12 or higher, Android 8 or higher
Communications: WiFi 802.11n, 2.4 GHz, WPA2 encryption
Shipping Weight: 0.6 lb. (270 g)
Dimensions: 4-5/8" H x 3" W x 15/16" D (118 x 76 x 24 mm)
Power supply: 15 to 30 V (ac/dc), 2 VA, Class 2

Tekmar WiFi Thermostat 561 - One Stage Heat
