078

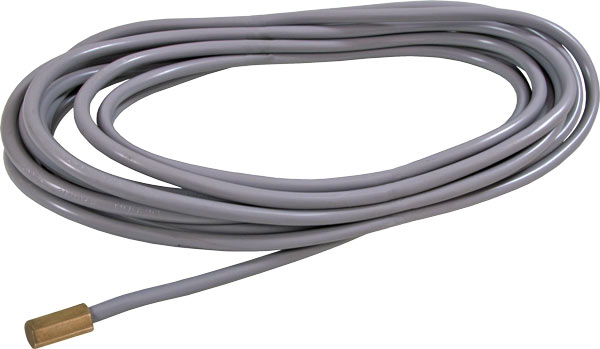

Tekmar Universal Sensor - 15' (4.6 m) wire

The Universal Sensor 078 is a temperature sensor with a stiff jacketed cable, making it a perfect choice for easy installation into conduit or domestic hot water tank temperature wells. The sensor can also be strapped to a pipe to measure supply or return temperatures.

Easy installation into domestic hot water tank temperature wells
Sensor can also be strapped to a pipe to measure supply or return temperatures
Stiff jacketed cable for easy wiring in conduit
10K thermistor

Factory Direct

$ 97.56

30-day money back guarantee

Dimensions
- 3/8" OD x 3/4" (9.5 OD x 19 mm)
Sensor
- NTC thermistor, 10 kΩ @ 77°F (25°C ±0.2°C) ß=3892
Manufacturer
- Tekmar
Packaged Weight
- 0.35 lb. (160 g)
Warranty
- Limited 3 Year (See 078_D for full warranty)
Operating Range
- -40 to 221°F (-40 to 105°C)
Sensor Material
- Brass sleeve, 15' (4.6 m) 18 AWG, HDPE jacket, 300 V cable

Add to wishlist

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Dimensions: 3/8" OD x 3/4" (9.5 OD x 19 mm)

Sensor: NTC thermistor, 10 kΩ @ 77°F (25°C ±0.2°C) ß=3892

Manufacturer: Tekmar

Packaged Weight: 0.35 lb. (160 g)

Warranty: Limited 3 Year (See 078_D for full warranty)

Operating Range: -40 to 221°F (-40 to 105°C)

Sensor Material: Brass sleeve, 15' (4.6 m) 18 AWG, HDPE jacket, 300 V cable

Documents

Tekmar 078 Manual Tekmar 078 Submittal
