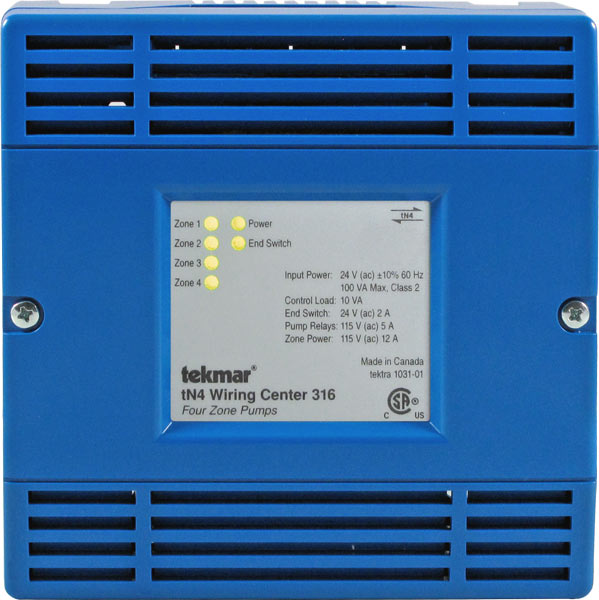

The tekmarNet® 4 Wiring Center 316 is designed to provide a zoning
solution for heating systems. It can be used in applications ranging from
baseboard zones, to radiant heating zones. This control energizes up to 4
zone pumps. It is capable of providing power for up to 4 tekmarNet ® 4 or
stand alone thermostats and energizing their respective 115 V (ac) zones,
as well as providing an end switch closure to enable an external device
such as a boiler.
- Four 115 V (ac) powered zone outputs
- For use with tekmarNet® 4 thermostats
- tN4 expansion terminals
- Isolated end switch
- External diagnostic LEDs
- CSA C US Certified for use in USA and Canada
