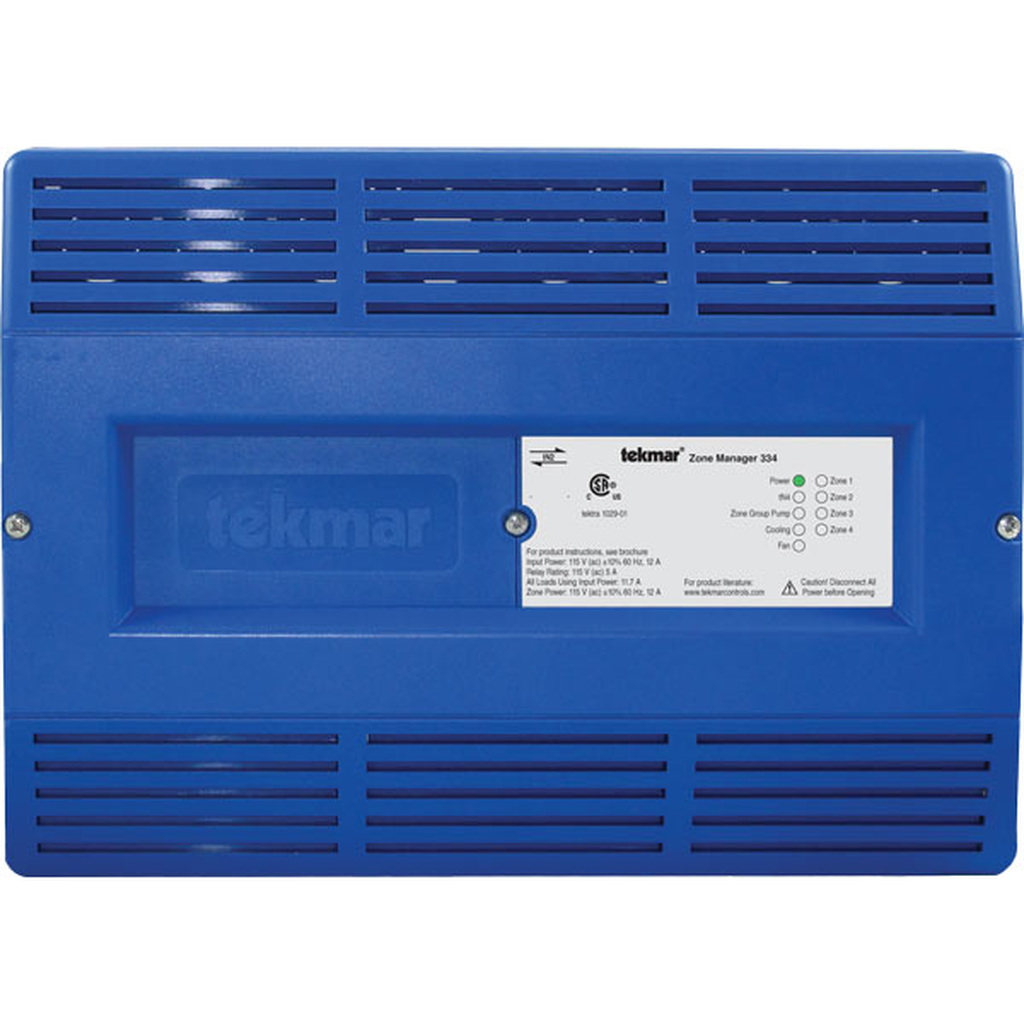

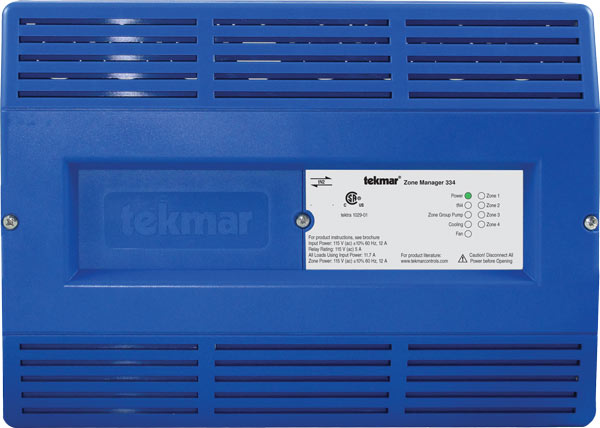

The tekmarNet® 2 Zone Manager 334 is designed to provide a zoning
solution for 2-wire tekmarNet ® 2 thermostats used in heating systems. It
can be used in applications ranging from baseboard zones, to remote
manifolds for radiant heating. This control energizes up to 4 zone valves
or zone pumps. It is capable of providing power for up to 4 tekmarNet® 2
thermostats and energizing their respective 24 V (ac) or 115 V (ac) zones,
as well as providing a powered Zone Group Pump (powered end switch)
contact to enable an external device such as a manifold pump.
- Only requires 2 wires per zone
- For use with tekmarNet® 2 thermostats only
- tekmarNet® 4 compatible
- Four zone valves or zone pumps
- Time delay for thermal motor zone valves
- Provides power to tekmarNet® 4 reset module
- CSA C US Certified for use in USA and Canada
