079

Name: 079
Price: 43.66 USD
Availability: InStock

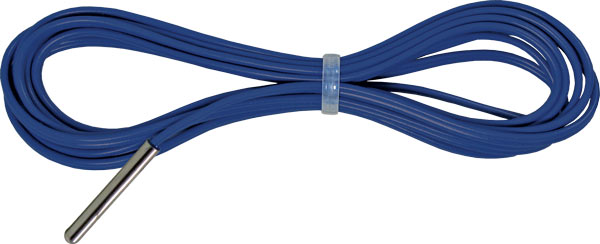

Tekmar Slab Sensor - 10' wire

The Slab Sensor 079 is commonly used for floor temperature sensing in floor heating applications. The thin casing allows for retrofit installation between tile spaces if necessary. This sensor is designed to provide a thermostat with the ability to maintain a minimum slab temperature, or help to limit the maximum slab temperature.

Features

10K thermistor
Commonly used for floor temperature sensing in floor heating applications
Compatible with tekmar thermostats that support slab sensing
Thin profile to simplify installation

Factory Direct

$ 43.66

Dimensions
- 3/16" OD x 1-1/2" (5 mm OD x 38 mm)
Sensor
- NTC thermistor, 10 k ohms at 77 degrees F (25 degrees C plus / minus 0.2 degrees C) Beta = 3892
Manufacturer
- Tekmar
Approvals
- CSA C US
Operating Range
- -58 to 140 degrees F (-50 to 60 degrees C)
Sensor Material
- 316 stainless steel, 10 FT (3 m) 24 AWG, 300 volt PVC insulated Zipcord

Add to cart

Add to wishlist

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Dimensions: 3/16" OD x 1-1/2" (5 mm OD x 38 mm)

Sensor: NTC thermistor, 10 k ohms at 77 degrees F (25 degrees C plus / minus 0.2 degrees C) Beta = 3892

Manufacturer: Tekmar

Approvals: CSA C US

Operating Range: -58 to 140 degrees F (-50 to 60 degrees C)

Sensor Material: 316 stainless steel, 10 FT (3 m) 24 AWG, 300 volt PVC insulated Zipcord

Documents

Tekmar 079 Manual Tekmar 079 Submittal
