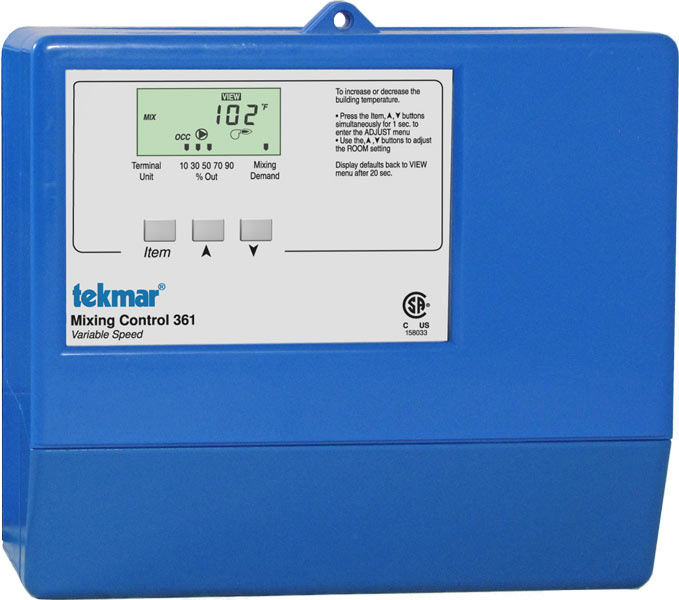

The Mixing Control 361 is designed to operate a mixing pump using
Outdoor Temperature Reset. It can be used in applications ranging from
in-floor radiant to commercial baseboard systems for Boiler Return
Protection with full reset. This control regulates a single heating water
temperature through Mixing Outdoor Reset. It provides mixing by speeding
up or slowing down a single permanent capacitor (standard wet rotor)
circulator, and provides control of the mix system pump.
- Outdoor temperature reset, indoor temperature feedback (with optional
indoor sensor)
- Warm weather shut down, boiler load control
- Automatic boiler differential, variable speed pump control
- Powered mixing system pump output, quick setup for easy installation
and programming of control
- User comfort adjustment to increase or decrease building space
temperature
- Advanced settings to fine-tune building requirements
- Test sequence to ensure proper component operation
- Setback input for energy savings
- CSA C US certified (approved to applicable UL standards)
