077

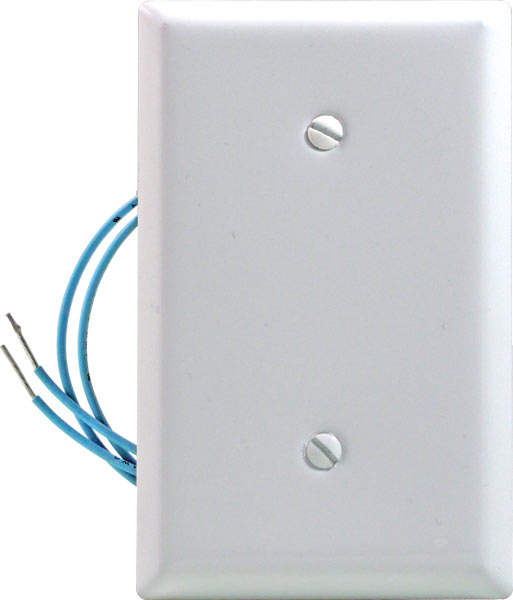

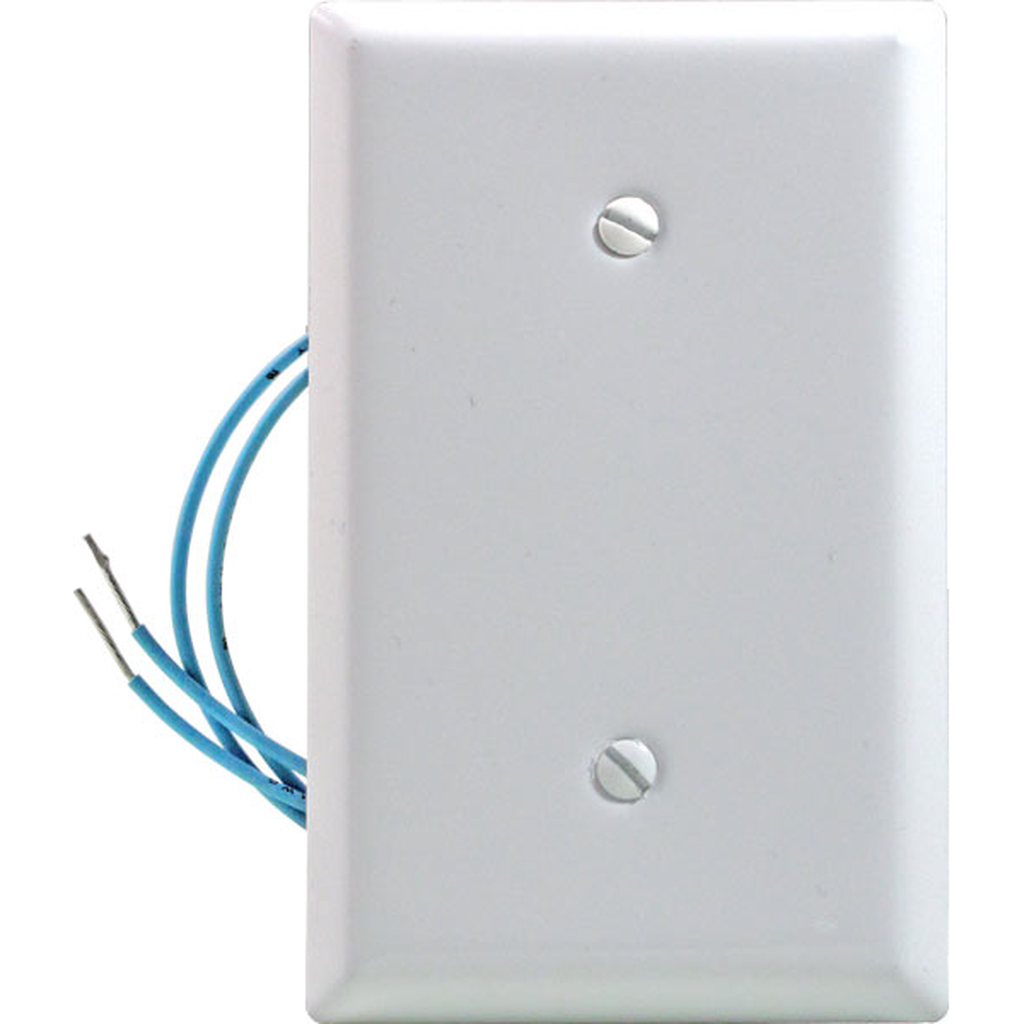

Tekmar Indoor Sensor - Cover Plate

The Indoor Sensor 077 is designed to act as a remote indoor temperature sensor. It can be used in a number of applications for indoor temperature sensing, and is sized for attachment to a 2 x 4 inch electrical box. This is a 10K thermistor designed to be installed with a compatible tekmar thermostat or control.

Compatible with tekmar thermostats that support auxiliary sensors
10K thermistor

Factory Direct

$ 91.09

Manufacturer
- Tekmar
Sensor
- NTC thermistor, 10 kΩ @ 77°F (25°C ±0.2°C) ß=3892
Approvals
- CSA C US
Packaged Weight
- 0.2 lb. (90 g), baked enamel (white) on steel
Warranty
- Limited 3 Year (See D077 for full warranty)
Operating Range
- Splashproof, -60 to 140°F (-51 to 60°C)
Dimensions
- 4-1/2" H x 2-7/8" W x 1/2" D (114 x 73 x 13 mm), 3/16" D (5 mm) when installed

Add to cart

Add to wishlist

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Manufacturer: Tekmar

Sensor: NTC thermistor, 10 kΩ @ 77°F (25°C ±0.2°C) ß=3892

Approvals: CSA C US

Packaged Weight: 0.2 lb. (90 g), baked enamel (white) on steel

Warranty: Limited 3 Year (See D077 for full warranty)

Operating Range: Splashproof, -60 to 140°F (-51 to 60°C)

Dimensions: 4-1/2" H x 2-7/8" W x 1/2" D (114 x 73 x 13 mm), 3/16" D (5 mm) when installed

Documents

Tekmar 077 Manual Tekmar 077 Submittal
