743

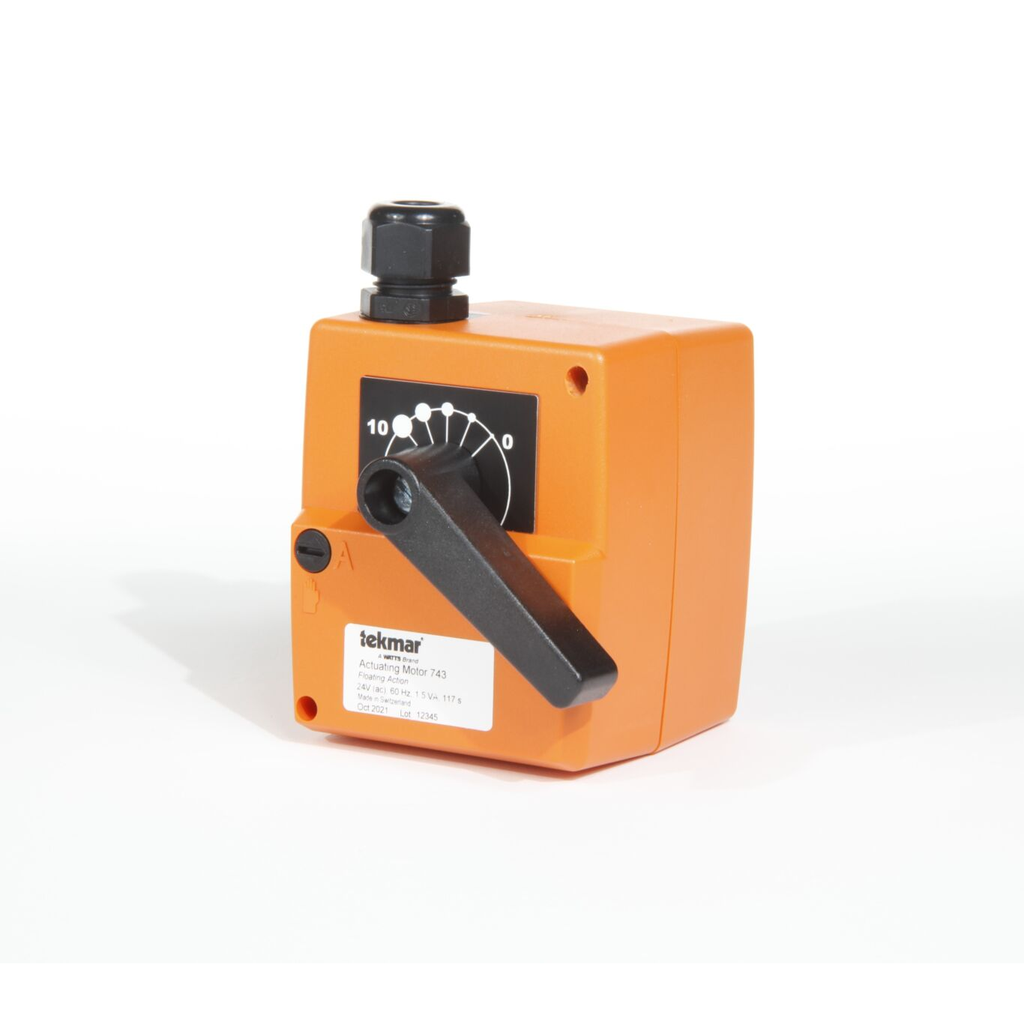

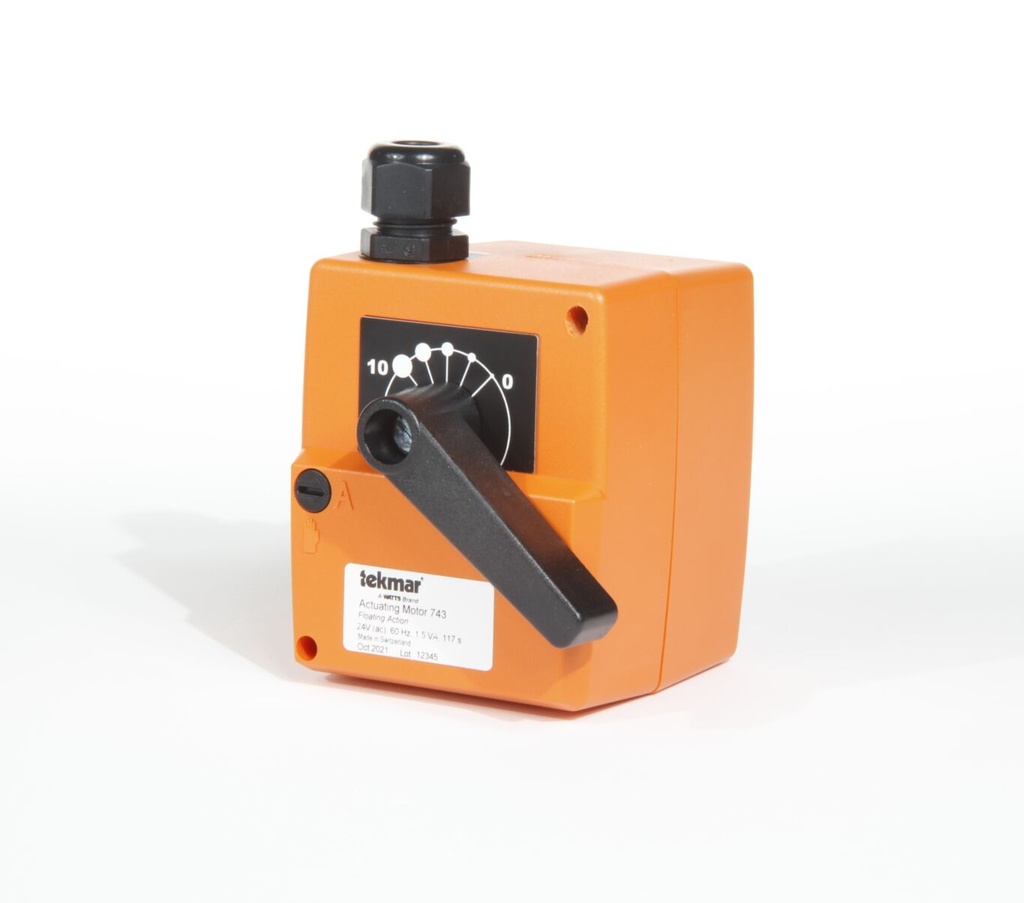

Tekmar Actuating Motor 743 - Floating Action

The Actuating Motor 743 is a 24 V floating action actuator designed to operate all tekmar brass mixing valves (710 to 724). It receives a 24 V open or close signal, which causes the motor to open or close the valve. It provides 10 N.m (88 in.lbs) of torque over a 90 degree rotation. This product rotates its output shaft whenever 24 V (ac) is applied between either the counter clockwise or clockwise terminals and the Com terminal. It is compatible with any control having a 24 V (ac) floating output.

10 N.m (88 in.lbs) of torque
Electrically limited to 90 degrees shaft rotation
117 second open or close time at 60 Hz
Designed to operate all tekmar brass mixing valves
It is compatible with any control having a 24 V (ac) floating output

Factory Direct

$ 629.54

30-day money back guarantee

Dimensions
- 3-5/8" H x 3-1/8" W x 3-9/16" D (93 x 80 x 90 mm)
Power Supply
- 24 V (ac) plus / minus 10 percent, 60 Hz, 1.5VA
Manufacturer
- Tekmar
Ambient Conditions
- Indoor use only, 32 to 122 degree F (0 to 50 degree C), RH less than 95% non-condensing
Control Signal
- 24 V (ac), floating action
Maximum Torque
- 10 N-m (88 in-lbs)
Rotation Angle
- Electrically limited to 90 degree shaft rotation
Run Time
- 117 seconds at 60 Hz

Add to cart

Add to wishlist

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Dimensions: 3-5/8" H x 3-1/8" W x 3-9/16" D (93 x 80 x 90 mm)

Power Supply: 24 V (ac) plus / minus 10 percent, 60 Hz, 1.5VA

Manufacturer: Tekmar

Ambient Conditions: Indoor use only, 32 to 122 degree F (0 to 50 degree C), RH less than 95% non-condensing

Control Signal: 24 V (ac), floating action

Maximum Torque: 10 N-m (88 in-lbs)

Rotation Angle: Electrically limited to 90 degree shaft rotation

Run Time: 117 seconds at 60 Hz

Documents

Tekmar 743 Manual Tekmar 743 Sumittal
