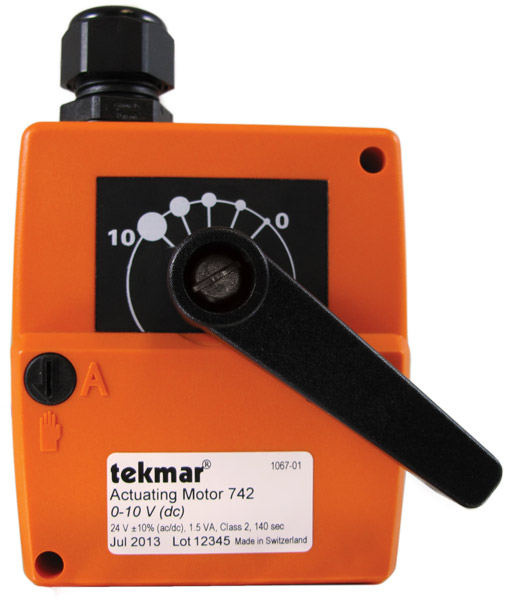

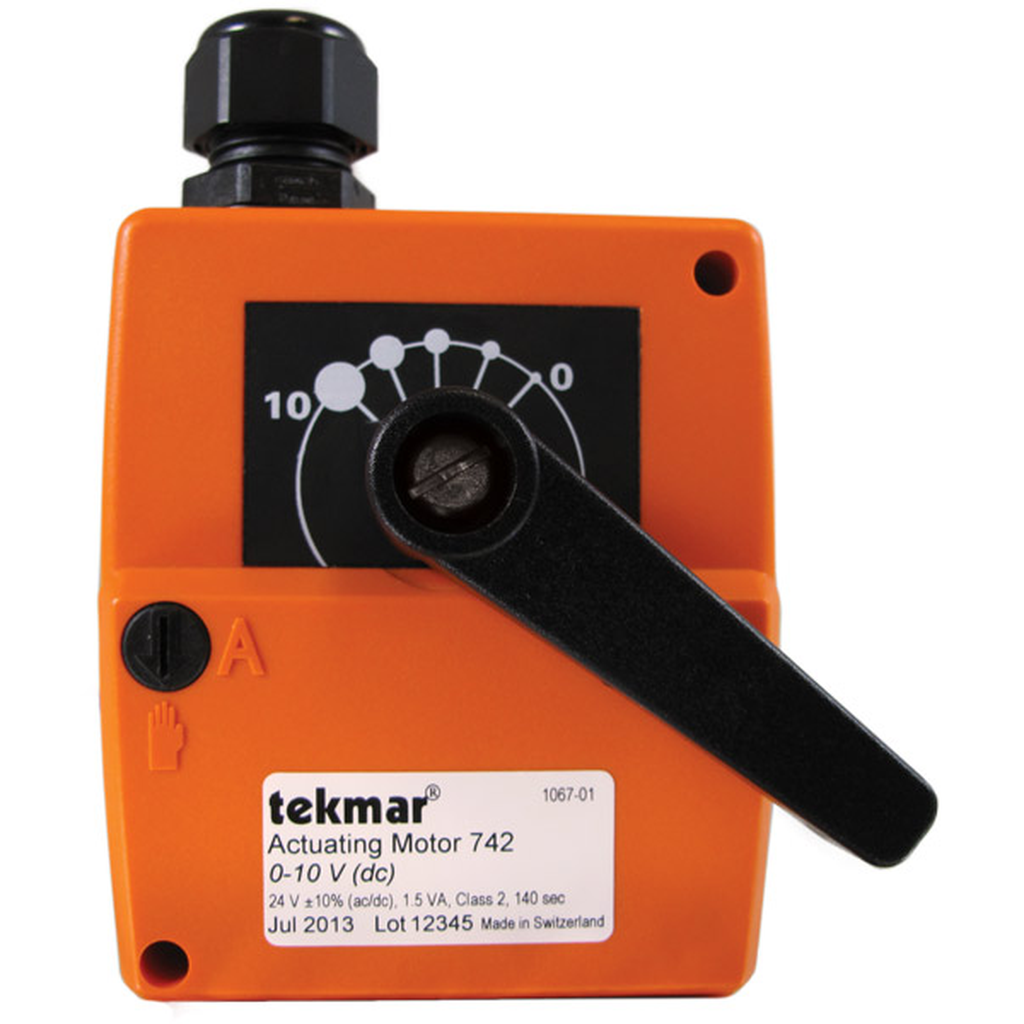

The Actuating Motor 742 uses a 0-10 or 2-10 V (dc) signal to adjust the
position of a mixing valve. It is compatible with tekmar brass mixing
valves 710 to 724. It provides 88 in-lbs (10 N-m) of torque over a 90
degree rotation. The rotation direction is selected by a toggle switch.
- Compatible with Tekmar brass mixing valves 710 to 724
- The rotation direction is selected by a toggle switch
- Reversible scale plate
- Manual override
