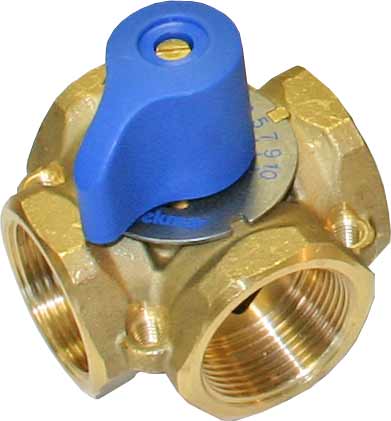

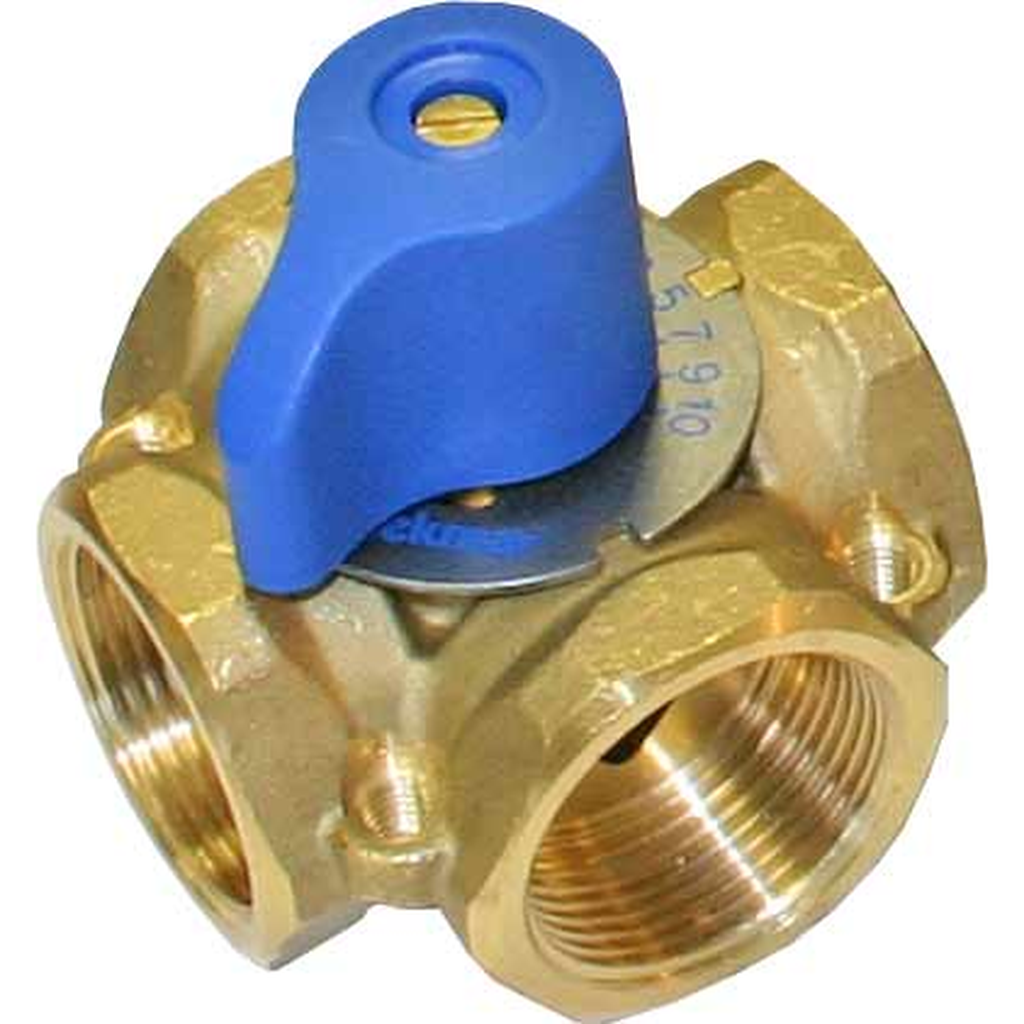

The 4-Way Brass Mixing Valve 723 is used to mix supply water from a
hydronic source with water returning from a system. It is designed for use
in either closed loop or open loop hydronic systems. This 4-way valve has
standard female NPT threads, as well as a maximum leak through rate of 1
percent to allow for water expansion during temperature changes. The valve
position can be manually set using the handle. An Actuating Motor
743 can be used to automatically operate the valve.
- 4-Way mixing valve
- Brass construction to resist corrosion
- Valve position is manually set using the handle
- 1-1/4 inch connection size
