013

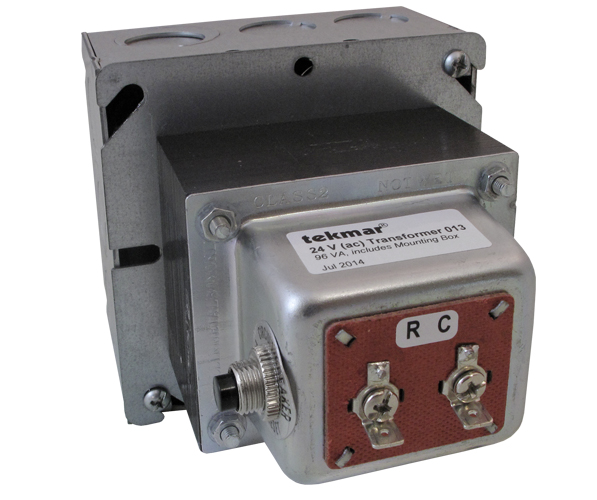

Tekmar 24 V (ac) Transformer 013 - 96 VA, includes Mounting Box

The 24 V (ac) Transformer 013 has a 115 V (ac) primary and a 24 V (ac) secondary with a capacity of 96 VA. A resettable circuit breaker protects the transformer from overloading. A 4 x 4 inch electrical junction box is included for mounting.

Includes 4 inch x 4 inch electrical box
NEC/CEC Class 2 circuits
96 VA
Resettable circuit breaker

Factory Direct

$ 161.16

30-day money back guarantee

Dimensions
- 4" L x 4" W x 5-7/8" H (102 x 102 x 150 mm)
Manufacturer
- Tekmar
Approvals
- Transformer UL C US, Electrical Box UL and CSA
Packaged Weight
- 5.0 lb (2300 g)
Warranty
- Limited 3 Year (See 013_D for full warranty)
Ambient Conditions
- Indoor use only, 32 to 122°F (0 to 50°C)
Input power supply
- 115 V (ac) ± 10%, 60 Hz
Output power available
- 22 to 30 V (ac), 60 Hz, 96 VA, Class 2
Breaker (Amp)
- 4 A

Add to cart

Add to wishlist

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Dimensions: 4" L x 4" W x 5-7/8" H (102 x 102 x 150 mm)

Manufacturer: Tekmar

Approvals: Transformer UL C US, Electrical Box UL and CSA

Packaged Weight: 5.0 lb (2300 g)

Warranty: Limited 3 Year (See 013_D for full warranty)

Ambient Conditions: Indoor use only, 32 to 122°F (0 to 50°C)

Input power supply: 115 V (ac) ± 10%, 60 Hz

Output power available: 22 to 30 V (ac), 60 Hz, 96 VA, Class 2

Breaker (Amp): 4 A

Documents

Tekmar 013 Manual Tekmar 013 Submittal
