ST838-ONE-SAMPLE

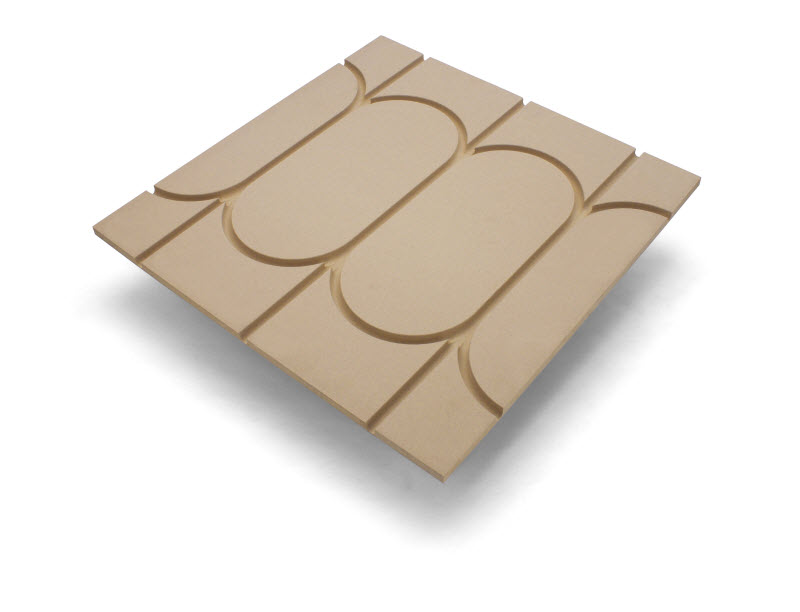

Watts Radiant SmartTrac Standard SubFloor Panel Sample, 1 ft. x 1 ft. for 3/8 in. Tubing
SmartTrac Hydronic Radiant Floor Heating Solution
SmartTrac is a non-structural, modular panel system, designed to simplify radiant heating and cooling installations in subfloor, wall and ceiling applications.
Easy to configure and quick to install, SmartTrac is a flexible solution for any new construction or remodeling project.
It is manufactured from 5/8" (15.88 mm) thick MDF (medium density fiberboard) and is designed for use with 3/8" (9.5 mm), ASTM F876 PEX or ASTM F2623 PERT.
|
SIMPLE |
THIN |
|
CLEAN |
EASY TO INSTALL |
|
LIGHTWEIGHT |
FAST |
|
FLEXIBLE |
GREENMinimum 92% recycled content, CARB ULEF exempt |
|
RESPONSIVE |
|
|
|
|
| SmartTrac Panels | SmartTrac works with Watts Radiant’s RadiantPERT™ and RadiantPEX+™ Tubing |
|
|
|
| SmartTrac Subfloor Radiant Under Hardwood Flooring | SmartTrac Subfloor Radiant Under Tile |
Details:
| Dimensions | 24 in. x 24 in. x 5/8 in. |
| Tube Spacing | 8 in. O.C. |
| Material | MDF (medium density fiberboard) |
| Density | 46 lb/ft3 |
| Internal Bond | 130 lb/in2 |
| Screw Holding, Face | 225 lbs |
| Screw Holding, Edge | 200 lbs |
| Flame Spread Rating | Class 3 |
| Moisture Content | 4 - 6% |
| Thickness Swell | 5% |
| Linear Expansion | 0.3% |
| Approvals | Awarded CARB ULEF Exemption. |
