Watts Radiant SmartTrac Standard SubFloor Panel, 2 ft. x 2 ft. for 3/8 in. Tubing, Palate of 132

    5,825.13 5,825.13 5825.13 USD


    This combination does not exist.

    Add to Cart

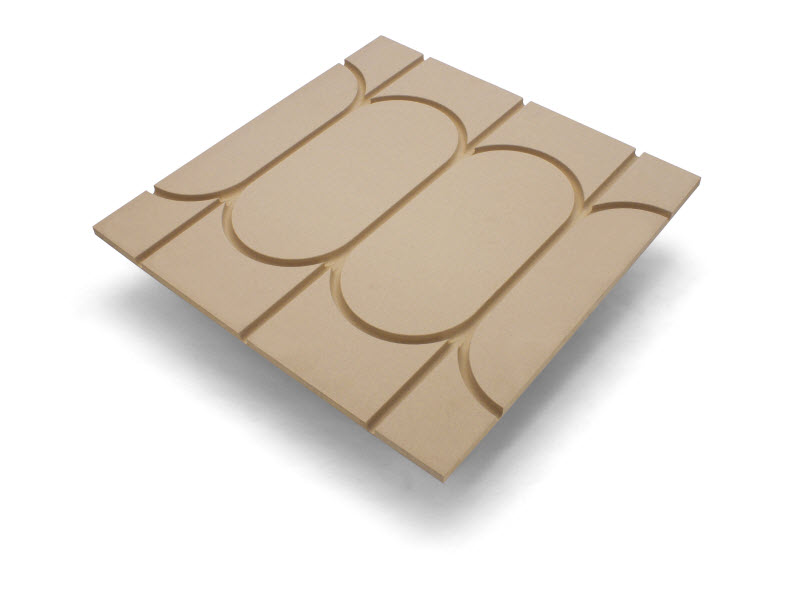

    Watts Radiant SmartTrac Standard SubFloor Panel, 2 ft. x 2 ft. for 3/8 in. Tubing, Palate of 132


    Dimensions24 in. x 24 in. x 5/8 in.
    Tube Spacing8 in. O.C.
    MaterialMDF (medium density fiberboard)
    Density46 lb/ft3
    Internal Bond130 lb/in2
    Screw Holding, Face225 lbs
    Screw Holding, Edge200 lbs
    Flame Spread RatingClass 3
    Moisture Content4 - 6%
    Thickness Swell5%
    Linear Expansion0.3%
    ApprovalsAwarded CARB ULEF Exemption.

    SmartTrac Hydronic Radiant Floor Heating Solution

    SmartTrac is a non-structural, modular panel system, designed to simplify radiant heating and cooling installations in subfloor, wall and ceiling applications.

    Easy to configure and quick to install, SmartTrac is a flexible solution for any new construction or remodeling project.

    It is manufactured from 5/8" (15.88 mm) thick MDF (medium density fiberboard) and is designed for use with 3/8" (9.5 mm), ASTM F876 PEX or ASTM F2623 PERT.

    One-panel solution

    Ultra low profile, 5/8 in. (16 mm), Designed for 3/8 in. Tubing

    No messy silicone required

    Significantly reduce installation time

    2-1/2 lbs. (1 kg) per square foot

    Eliminate schedule and curing delays

    Configure for any space

    GREENMinimum 92% recycled content, CARB ULEF exempt

    Responds faster than concrete

    SmartTrac Panels SmartTrac works with Watts Radiant’s RadiantPERT™ and RadiantPEX+™ Tubing

    SmartTrac Subfloor Radiant Under Hardwood Flooring SmartTrac Subfloor Radiant Under Tile

    Introducing SmartTrac Radiant Panel Solution

    How to Install SmartTrac Modular Panel Systems for Radiant Heating and Cooling
