RFS-75x200-328

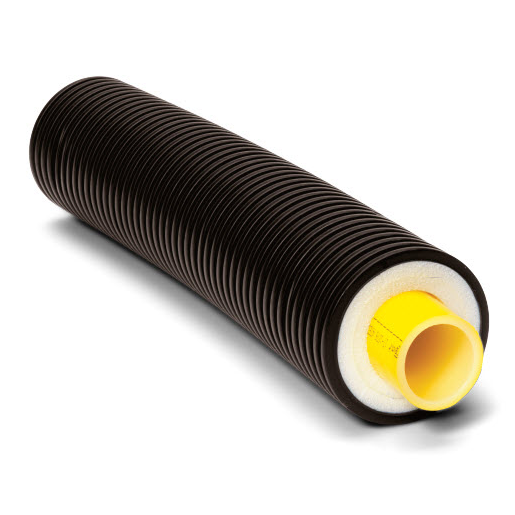

R-flex Single, 75mm (3 in.) x 200mm OD Jacket, 328 ft. Coil

    17,210.94 17,210.94 17210.94 USD

    17,210.94

    This combination does not exist.

    Add to Cart

    R-flex Single, 75mm (3 in.) x 200mm OD Jacket, 328 ft. Coil



    Technical Information:

    Nominal ID75 mm (3 in.)
    PEX ID61.4 mm (2.42 in.)
    PEX OD75.0 mm (2.95 in.)
    Jacket OD200 mm (7.90 in.)
    Bend Radius31.5 in.
    Volume gal/100 ft.23.9 gal.
    Insulation Thickness20.5 in.
    Casubg R-value7.4
    Tubing MaterialOxygen Barrier Pex
    Jacket MaterialDouble Wall HDPE
    ManufacturerWatts Radiant
    Operating Temperature & Pressure200 deg F @ 80 psi
    Operating Temperature & Pressure180 deg F @ 100 psi
    Operating Temperature & Pressure73 deg F @ 160 psi
