RFS-63x160-1

R-flex Single, 63mm (2.5 in.) x 160mm OD Jacket, by the foot

    44.87 44.87 44.87 USD

    44.87

    This combination does not exist.

    Add to Cart

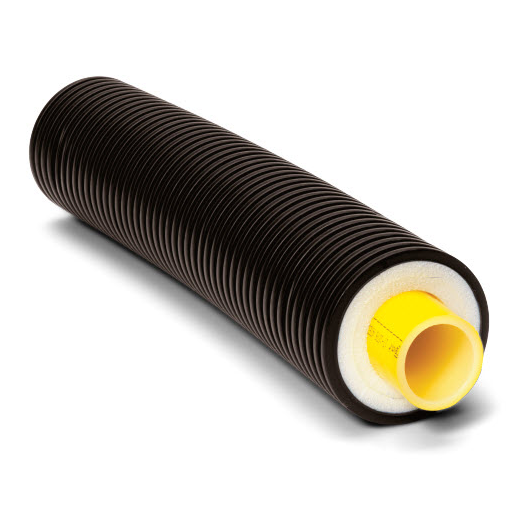

    R-flex Single, 63mm (2.5 in.) x 160mm OD Jacket, by the foot



    Technical Information:

    Nominal ID63 mm (2-1/2 in.)
    PEX ID51.6 mm (2.03 in.)
    PEX OD63.0 mm (2.48 in.)
    Jacket OD160 mm (6.30 in.)
    Bend Radius12.7 in.
    Volume gal/100 ft.16.81 gal.
    Insulation Thickness1.46 in.
    Casubg R-value5.27
    Tubing MaterialOxygen Barrier Pex
    Jacket MaterialDouble Wall HDPE
    ManufacturerWatts Radiant
    Operating Temperature & Pressure200 deg F @ 80 psi
    Operating Temperature & Pressure180 deg F @ 100 psi
    Operating Temperature & Pressure73 deg F @ 160 psi
