RFS-40x160-328

R-flex Single, 40mm (1.5 in.) x 160mm OD Jacket, 328 ft. Coil

    9,827.70 9,827.70 9827.7 USD

    9,827.70

    This combination does not exist.

    Add to Cart

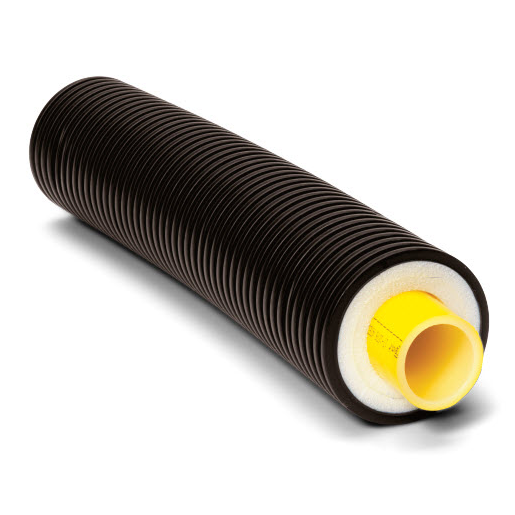

    R-flex Single, 40mm (1.5 in.) x 160mm OD Jacket, 328 ft. Coil



    Technical Information:

    Nominal ID40 mm (1-1/2 in.)
    PEX ID32.6 mm (1.28 in.)
    PEX OD40 mm (1.57 in.)
    Jacket OD160 mm (6.30 in.)
    Bend Radius13.8 in.
    Volume gal/100 ft.6.69 gal.
    Insulation Thickness1.88 in.
    Casubg R-value6.79
    Tubing MaterialOxygen Barrier Pex
    Jacket MaterialDouble Wall HDPE
    ManufacturerWatts Radiant
    Operating Temperature & Pressure200 deg F @ 80 psi
    Operating Temperature & Pressure180 deg F @ 100 psi
    Operating Temperature & Pressure73 deg F @ 160 psi
