RFD-63x200-1

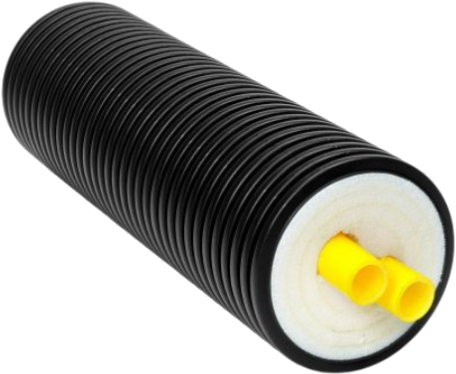

R-flex Dual, 63mm (2.5 in.) x 200mm OD Jacket, by the foot

    80.31 80.31 80.31 USD

    80.31

    This combination does not exist.

    Add to Cart

    R-flex Dual, 63mm (2.5 in.) x 200mm OD Jacket, by the foot



    Technical Information:

    Nominal ID63 mm (2-1/2 in.)
    PEX ID51.6 mm (2.03 in.)
    PEX OD63.0 mm (2.48 in.)
    Jacket OD200 mm (7.90 in.)
    Bend Radius47.3 in.
    Volume gal/100 ft.33.6 gal.
    Insulation Thickness1.30 in.
    Casubg R-value4.69
    Tubing MaterialOxygen Barrier Pex
    Jacket MaterialDouble Wall HDPE
    ManufacturerWatts Radiant
    Operating Temperature & Pressure200 deg F @ 80 psi
    Operating Temperature & Pressure180 deg F @ 100 psi
    Operating Temperature & Pressure73 deg F @ 160 psi
