RFD-40x160-1

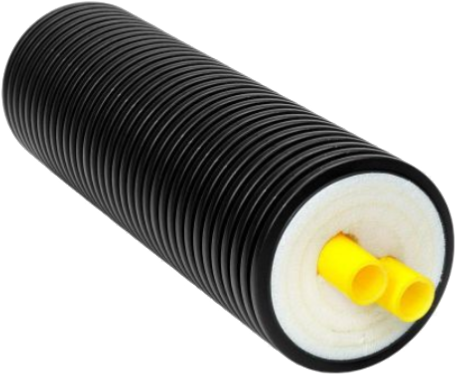

R-flex Dual, 40mm (1.5 in.) x 160mm OD Jacket, by the foot

    45.79 45.79 45.79 USD

    45.79

    This combination does not exist.

    Add to Cart

    R-flex Dual, 40mm (1.5 in.) x 160mm OD Jacket, by the foot



    Technical Information:

    Nominal ID40 mm (1-1/2 in.)
    PEX ID32.6 mm (1.28 in.)
    PEX OD40 mm (1.57 in.)
    Jacket OD160 mm (6.30 in.)
    Bend Radius23.7 in.
    Volume gal/100 ft.13.4 gal.
    Insulation Thickness1.34 in.
    Casubg R-value4.84
    Tubing MaterialOxygen Barrier Pex
    Jacket MaterialDouble Wall HDPE
    ManufacturerWatts Radiant
    Operating Temperature & Pressure200 deg F @ 80 psi
    Operating Temperature & Pressure180 deg F @ 100 psi
    Operating Temperature & Pressure73 deg F @ 160 psi
