RFD-32x125-328

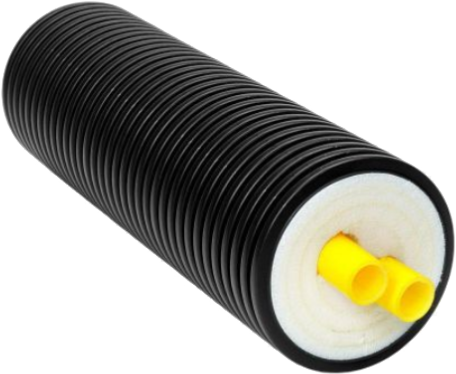

R-flex Dual, 32mm (1.25 in.) x 125mm OD Jacket, 328 ft. Coil

    9,029.51 9,029.51 9029.51 USD

    9,029.51

    This combination does not exist.

    Add to Cart

    R-flex Dual, 32mm (1.25 in.) x 125mm OD Jacket, 328 ft. Coil



    Technical Information:

    Nominal ID32 mm (1-1/4 in.)
    PEX ID26.2 mm (1.03 in.)
    PEX OD32.0 mm (1.26 in.)
    Jacket OD125 mm (4.9 in.)
    Bend Radius11.8 in.
    Volume gal/100 ft.8.7 gal.
    Insulation Thickness.88 in.
    Casubg R-value3.18
    Tubing MaterialOxygen Barrier Pex
    Jacket MaterialDouble Wall HDPE
    ManufacturerWatts Radiant
    Operating Temperature & Pressure200 deg F @ 80 psi
    Operating Temperature & Pressure180 deg F @ 100 psi
    Operating Temperature & Pressure73 deg F @ 160 psi
