RFD-1x125-1

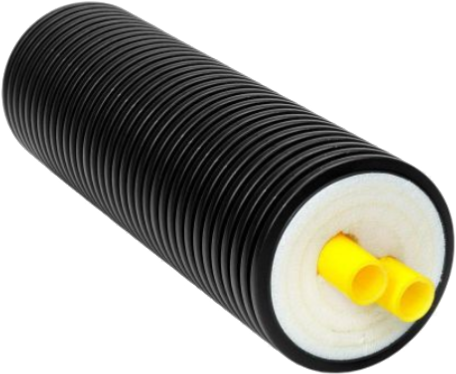

R-flex Dual, 1" x 125mm OD Jacket, by the foot

    28.75 28.75 28.75 USD

    28.75

    This combination does not exist.

    Add to Cart

    R-flex Dual, 1" x 125mm OD Jacket, by the foot



    Technical Information:

    Nominal ID25 mm (1 in.)
    PEX ID.863 in. (21.92 mm)
    PEX OD1.125 in. (28.58 mm)
    Jacket OD4.90 in. (125 mm)
    Bend Radius11.8 in.
    Volume gal/100 ft.6.1 gal.
    Insulation Thickness1.11 in.
    Casubg R-value4.1
    Tubing MaterialOxygen Barrier Pex
    Jacket MaterialDouble Wall HDPE
    ManufacturerWatts Radiant
    Operating Temperature & Pressure200 deg F @ 80 psi
    Operating Temperature & Pressure180 deg F @ 100 psi
    Operating Temperature & Pressure73 deg F @ 160 psi
