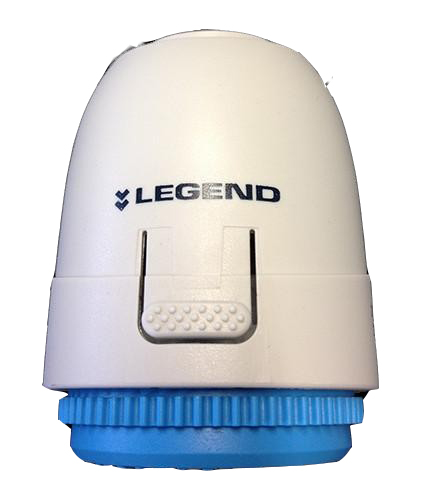

Legend Circuit Actuator
Description
4-Wire Circuit Actuator 24 volt AC actuator with 36" leads. Includes end
switch that closes when valve is fully open.
Features
- Condition in absence of voltage; NC - Normally Closed First Open
Function*
- Valve working stroke 0.16" (4mm)
- Class II dust protection
- Opening time at 77°F ≈ 3 minutes
- Working ambient temperature: 32°F - 140°F
- Storage ambient temperature: 13°F - 140°F
- Fluid temperature : 50°F - 212°F
- Mountable in any orientation
- Valve position indicator on top of valve casing
- Double insulated electrical enclosure
- Reliable thermo-electric operation
