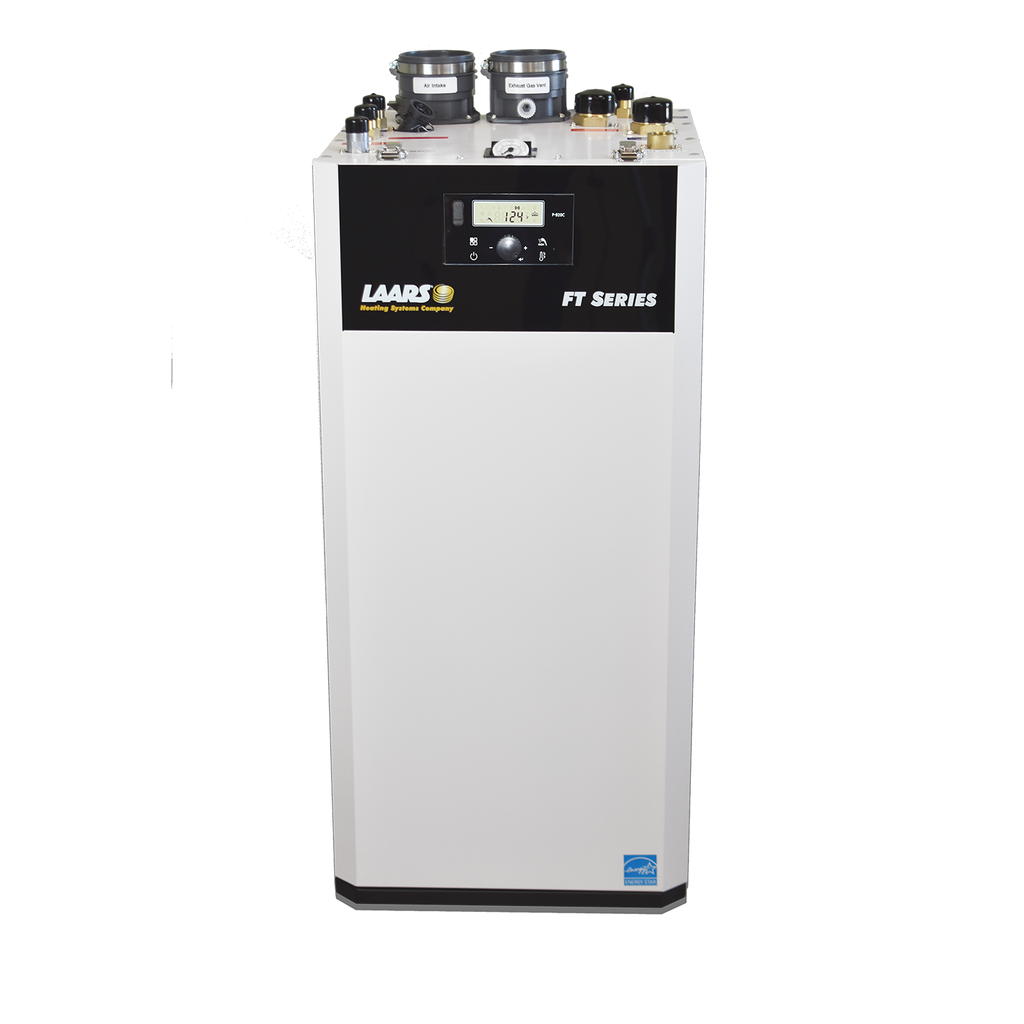

FT Series Floor Combi

Taking Condensing Off-the-Wall

• Built-in Low Loss Header

• • Integral low loss header hydraulically separates the boiler loop from the home's heating loop. Simple connection to the system's supply and return and the boiler piping is complete!

• 10:1 Turndown

• • Boiler and combi units modulate seamlessly from 100% to 10% of input during heat demand with full input during domestic demand.  The means energy and fuel savings!

• DHW Smart Priority™

• • Innovative design requires no diverter valve so water is supplied for both space heating and domestic water heating simultaneously

• Ultra High Efficiency

• • Environmentally friendly ultra high 95% AFUE efficiency

• Industry Leading Domestic Hot Water Delivery

• • Industry best domestic hot water delivery from a combi boiler:
  • First minute delivery of 6+ gpm at a 70o rise and continuous delivery of 5.2 gpm at a 70o rise

• Multiple Venting Options

• • PVC, CPVC, Polypropylene and Stainless Steel
  • Two-pipe or two-pipe to concentric venting

• All Piping Connections Located on Top

• • Uniquely designed for the replacement market with 100% of connections on the top of the unit - including domestic recirc
  • An easy retrofit for all boilers - even older cast iron units!

• Contractor & Installation Friendly

• • Quick set-up control functions
  • Built-in low loss header
  • Easy front access - securely hinged panel requires no screws
  • Left side panels (3) for additional access
  • Multiple vent configuration options - bazooka or separate
  • Thermostatic mixing valve included with EVERY combi unit

Description

The Mascot FT is a combination ("Combi" - heating and domestic hot water) or heating-only wall mounted boiler packed with features. It easily satisfies the space heating and hot water needs of the modern home.

Powering the Mascot FT is an advanced fire tube heat exchanger that uses the latest in heating tube technology. Our heat transfer tubes are constructed with an inner finned aluminum core and an outer corrosion-resistant stainless steel sleeve. This combination results in a system that delivers quick heating response, exceptional efficiency, and years of reliable service.

Advanced Straightforward Controls

Every Mascot FT is equipped with the advanced Laars Integrated Control System

• Easy-to-use dial and push button input system with large backlit display
• Functions are clearly displayed for quick set-up and diagnostics
• Quick access buttons for temperature control and boiler status functions
• Outdoor reset feature for fuel savings

Saves You Money

Greatly reduces heating bills when compared to older, low-efficient boilers-up to 20% lower! Potentially saves thousands of dollars in heating bills over the life of the boiler.

• Up to 95% efficiency (AFUE) equals lower fuel use
• Outdoor reset technology balances your home's heating needs with the outside temperature
• Mascot FT modulates to a lower firing rate during cool days to reduce fuel use even further
• Maximum Rebate Eligible-check federal, state, and local rebates for upfront savings!

Enough Hot Water for Everyone

• The Laars Mascot FT combi models use a "hybrid water heater design" that combines the best of tankless water heating and tank type water heating into one compact system.
• A half gallon mini-indirect tank is kept charged with hot water, always on standby to ensure that you have hot water available as fast as possible.
• When the half gallon of hot water begins to be used by your faucet, shower, etc., the boiler fires and immediately begins to produce more hot water.
• The half gallon mini-indirect tank makes sure you have hot water quickly and the boiler makes sure you never run out of hot water for as long as you need it!

The best of both worlds! Hot water fast and an endless supply never run out again
