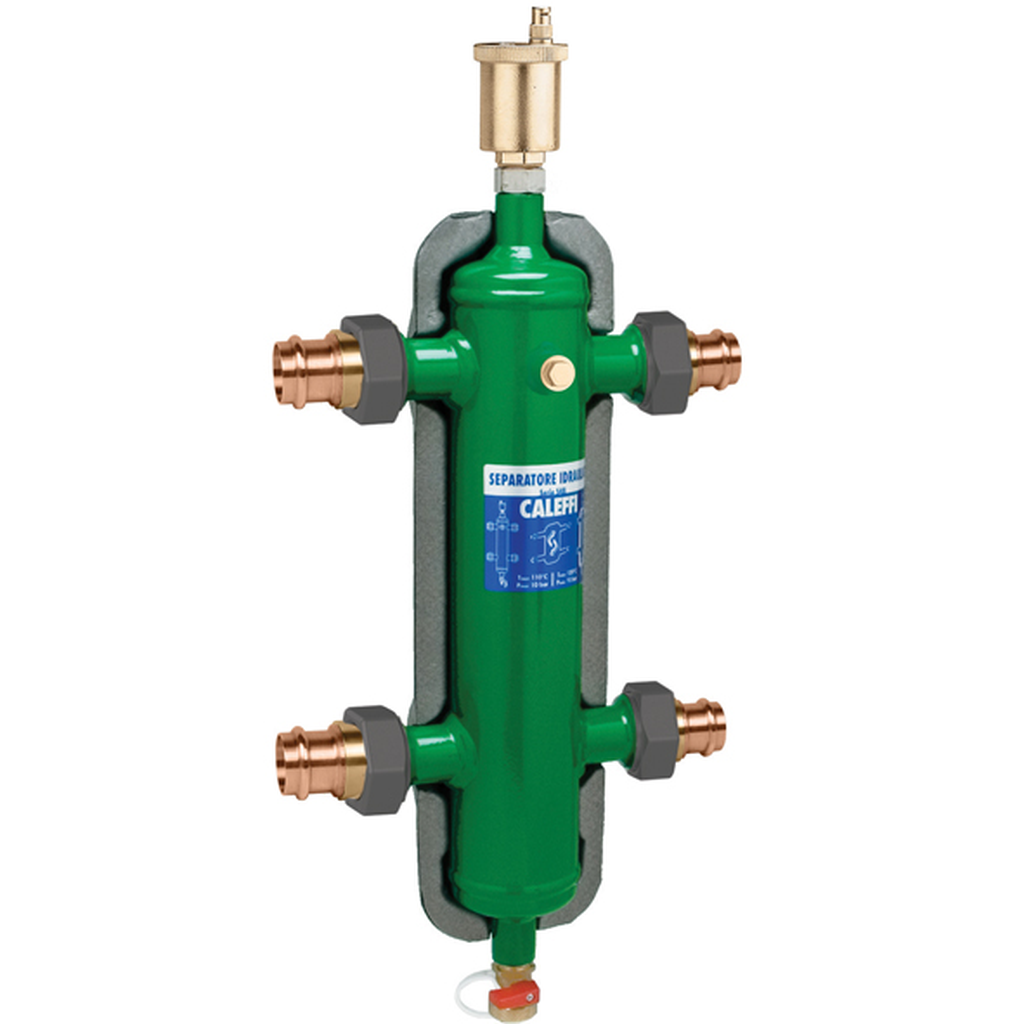

Caleffi Hydroseparator 1-1/2 in. NPT Union
The Caleffi 548 and NA548 series hydraulic separator creates a zone with a low pressure loss, which enables connected primary and secondary circuits to be hydraulically independent of each other; the flow in one circuit does not create or interupt flow in another. Hydraulically decoupling primary and secondary circuits eliminates pump conflict. This device includes an automatic high-capacity air vent with service valve to discharge accumulated air within the circuits.
Hydraulic separator. NPT female, sweat and press union connections 1 in., 1-1/4 in., 1-1/2 in. and 2 in.. Epoxy resin painted steel body. Cast iron union nuts. 300 series stainless steel internal baffle. Working temperature range of 32 to 210° F (0 to 100° C) with insulation, 32 to 250° F (0 to 120°C) without insulation. Glycol maximum 50%. Max. working pressure 150 psi (10 bar). Supplied with: automatic air vent with automatic service check valve 1/2 in. NPT female outlet connection and brass body. Drain ball valve brass body with hose connection. Pre-formed double density closed cell expanded PE-X foam shell insulation with external embossed aluminium cover. 1/2 inch female straight thread thermometer pocket well front center. Provide temperature pocket well kit, code NA10425.
