FPLT04500-20

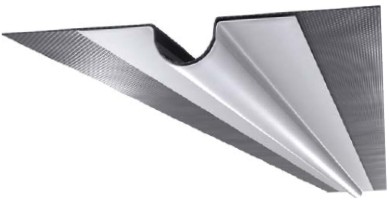

4 ft. High Performance FlexPlate for 1/2 in. PEX - 20 pc

    475.49 475.49 475.49 USD

    475.49

    This combination does not exist.

    Add to Cart

    4 ft. High Performance FlexPlate for 1/2 in. PEX - 20 pc



    Specifications

    FlexPlate is a revolutionary new type of under floor heating plate.
    The primary material in the plate is a specially processed natural graphite, giving FlexPlate 50% higher thermal conductivity than aluminum. Extensive performance testing indicates FlexPlate will outperform the extruded aluminum plates.

      FlexPlate Logo
    FlexPlate Inst
    Graphite is unique.
    FlexPlate is made from naturally occurring graphite that has been specially processed to give it unique thermal properties. Similar products have been used for years in the electronics industry to dissipate heat away from key components in plasma TVs, cell phones, and computers. Recent enhancements to this technology enable the radiant market to benefit from this innovative material. Graphite's unique atomic structure enables it to transfer heat more efficiently than aluminum. And more evenly at start-up.
    The manufacturing process for a graphite plate has a substantially lower carbon footprint and lower CO2 emissions as compared to aluminum or copper. It is also much lighter to ship, and of course, to install.

    FlexPlates can be used in underfloor, wall, ceiling, and above-floor applications.

    Homeowner benefits:

    • Lower required fluid temperature means the ability to use more efficient heat sources
    • A more even, comfortable heat
      Installer benefits:
    • Light weight and flexible
    • Trim-to-fit format
    • Cut with a utility knife
    • Fast, simple installation
    • No sharp edges

    Using FlexPlates increases heat output by about 15% compared to extruded aluminum plates, or about 75% compared to bare PEX stapled up. This means that required water temperatures can be lowered by 5-10 deg F versus extruded aluminum plates and 30-45 deg F versus bare PEX stapled up. Due to this efficiency, FlexPlates more aptly utilize high efficiency, low temperature heat sources such as condensing boilers, geothermal, or solar.

    FlexPlate FLIR

    The infrared camera doesn't lie.

    The FlexPlate on the left exhibits more even distribution of the heating from the hydronic tubing below the floor. It also heats the floor covering above at a slightly accelerated pace.

    FlexPlates are lightweight, flexible, cut easily with scissors or a utility knife, ease to staple, and don't have any sharp edges that require grinding.

    FlexPlate graphite plates install 40% faster than aluminum plates.

    FlexPlate Cut

    Box of 20 - Each Measures 6" wide x 4' long.

    FlexPlate Layout
