DMF300

Axiom 17 Gallon Digital System Feeder

    883.92 883.92 883.9200000000001 USD

    883.92

    This combination does not exist.

    Add to Cart

    Axiom 17 Gallon Digital System Feeder



    Item Details:

    Height (in.)36
    Weight (lbs) - Empth18
    Electrical50 Watts/100-240VAC/50-60 Hz/1 to 24 VDC
    Pump Performance1 gpm @ free flow
    Self Priming4 feet

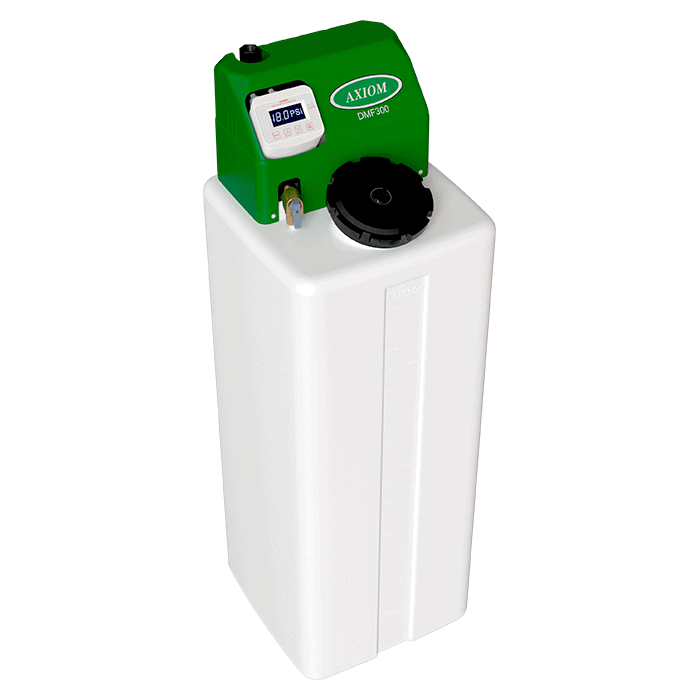

    DMF300 ‘Pressure Pal’ Digital Mini System Feeder

    The industry leader for pressurizing closed-loop hydronic systems introduces the newest ‘PRESSURE PAL’ to the Axiom Product Family. The DMF300 utilizes a digital pressure control (0-45 psi) with electronic alert contacts. The front fill point makes fluid handling a simple process.

    Features and Benefit

    • 64 litre (17 US gallon) tank for storage and mixing

    • All features shown on user friendly digital display screen

    • 0-45psig Pressure Setpoint with adjustable dead band

    • N.O./N.C. Alert contacts and LED light enabled when low level, low pressure, or high-pressure condition

    • Tilted 5” easy fill access on front of tank

    • UL listed Power supply plugs into any standard 115 VAC outlet

    • Diaphragm pump can run dry without damage

    • No direct connection to potable water supply eliminates need for backflow prevention

    • Make-up fluid stored in the feeder tank can be pre-treated to meet appliance manufacturers specifications

    • Fluid level switch shuts the pump off and enables alarm contacts if the storage tank level gets too low

    • Diverter valve allows easy purging of air on initial start-up, and manual mixing of solution

    • Fluid drained for service can easily be put back into the system

    • Prevents major floods

    • Provides leak detection



    Axiom MF200 and MF300 Pressure Adjustment
