676259A

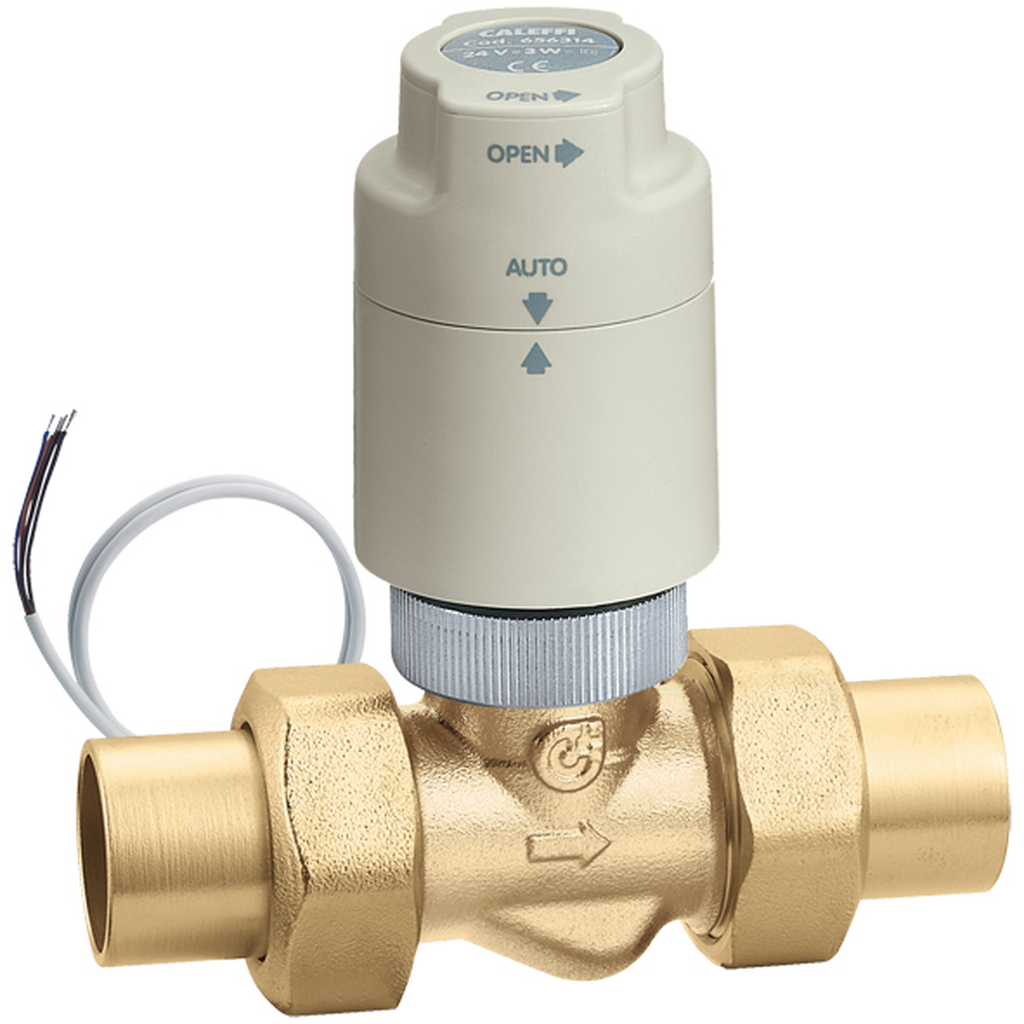

Caleffi Zone Valve 3/4 in. SWT, Twistop end switch

2-way thermo-electric zone valve Two-way thermo-electric zone valve. Complete with TwisTop™ (code 656354) actuator. Brass trim. Spring return. Normally closed.

Power consumption: holding: 3 W.
Power consumption: inrush: 6 VA.
Connection: 3/4", Sweat.
Maximum working pressure: 150 psi.
Medium temperature range: 32–200 °F.
Electric supply: 24 V (AC) / (DC).
Starting current: ≤ 250 mA.
Auxiliary microswitch contact rating (24 V): 5 A.
△p max.: 20 psi.
Cv: 4.0 gpm.

Factory Direct

$ 172.73

30-day money back guarantee

Power Consumption
- Holding 3 W Inrush 19 VA
Initial current draw
- ? 250 mA
Wire Lead Connection
- 31.5 in.
Rating of micro-switch contacts
- 5 A (24 V)
Manufacturer
- Caleffi
Max Working Pressure
- 150 psi.
Power supply
- 24V AC/DC
Max temp
- 200 °
Max ?P close-off pressure
- 20 psi

Get Quote

Add to wishlist

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Power Consumption: Holding 3 W Inrush 19 VA

Initial current draw: ? 250 mA

Wire Lead Connection: 31.5 in.

Rating of micro-switch contacts: 5 A (24 V)

Manufacturer: Caleffi

Max Working Pressure: 150 psi.

Power supply: 24V AC/DC

Max temp: 200 °

Max ?P close-off pressure: 20 psi
