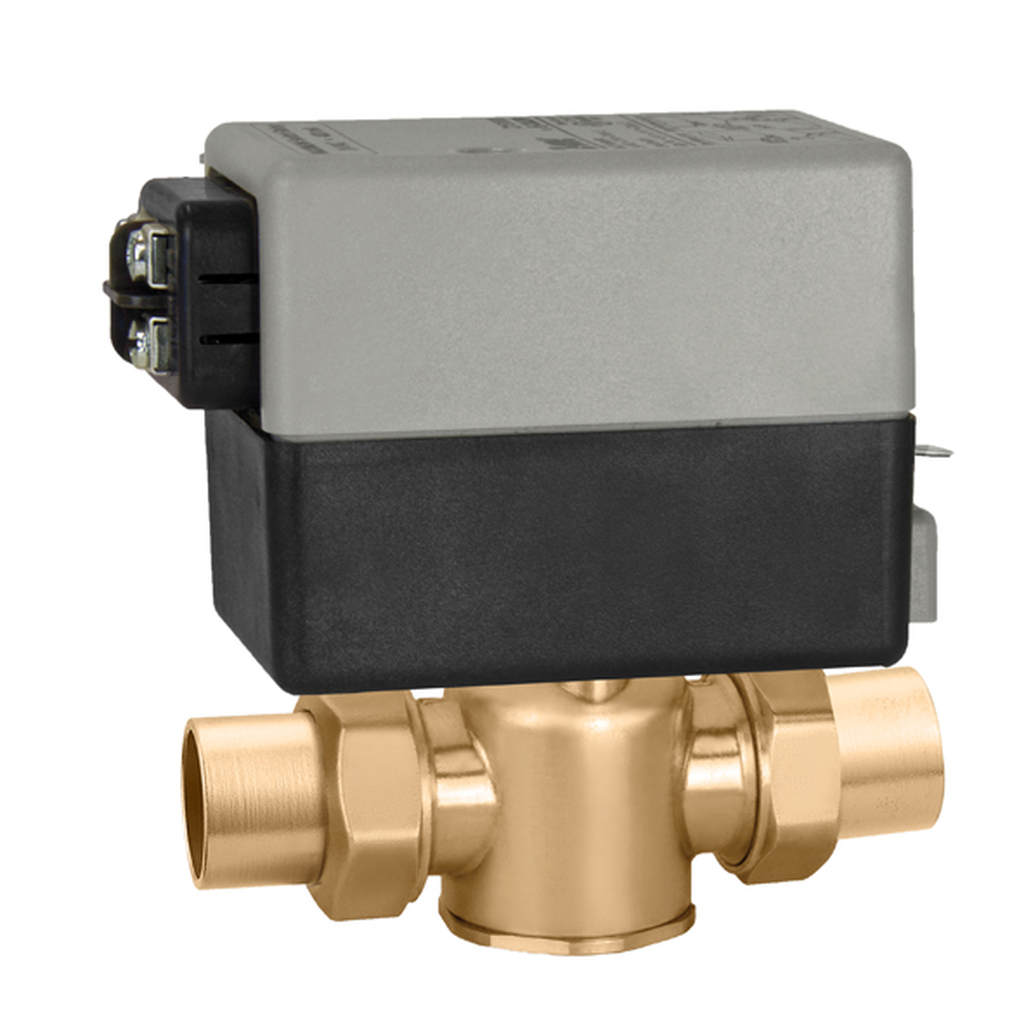

Z55

Z55

  • 2-way motorized zone valve (with screw terminal connection) With auxiliary microswitch.
  • UL873, cULus Listed & CE. UL 1995 sec. 18 air plenums and ducts.U.S. Patent 7,048,251.
  • Normally closed actuator: Z151000.
  • Spring return. Auxiliary micro-switch.
  • Maximum working pressure: 300 psi.
  • Medium temperature range: 32–240 °F.
  • Electric supply: 24 V (AC).
  • Power consumption: 7 VA.
  • Auxiliary microswitch contact rating (24 V): 0.4 A.
  • Maximum percentage of glycol: 50 %.
  • Medium: water, glycol solutions, vapor (max. 15 psi).
  • △p max.: 30 psi.
  • Cv: 3.5 gpm.
$ 163.17 $ 163.17

  • Max temp
  • Max body pressure
Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us
Max temp: 200 °
Max body pressure: 150 psi.

Caleffi Z-One 2-Way Zone Valve, 3/4 in. Sweat
