520610AC

520610AC

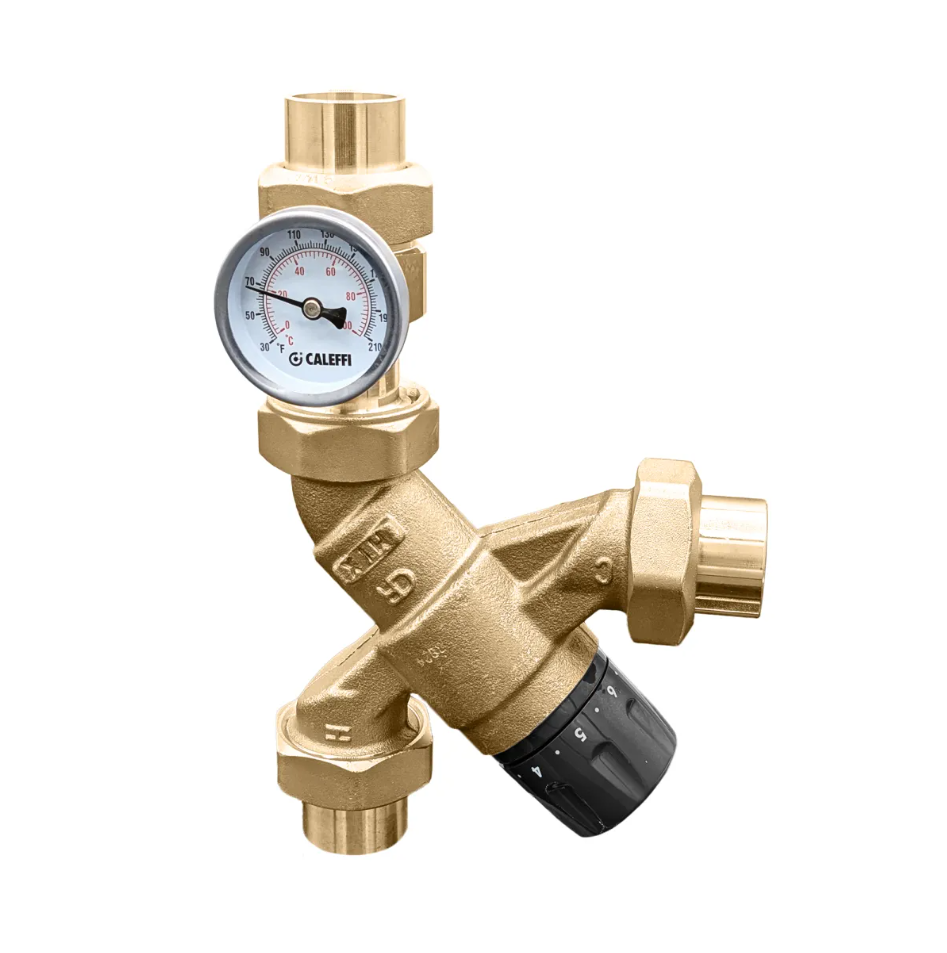

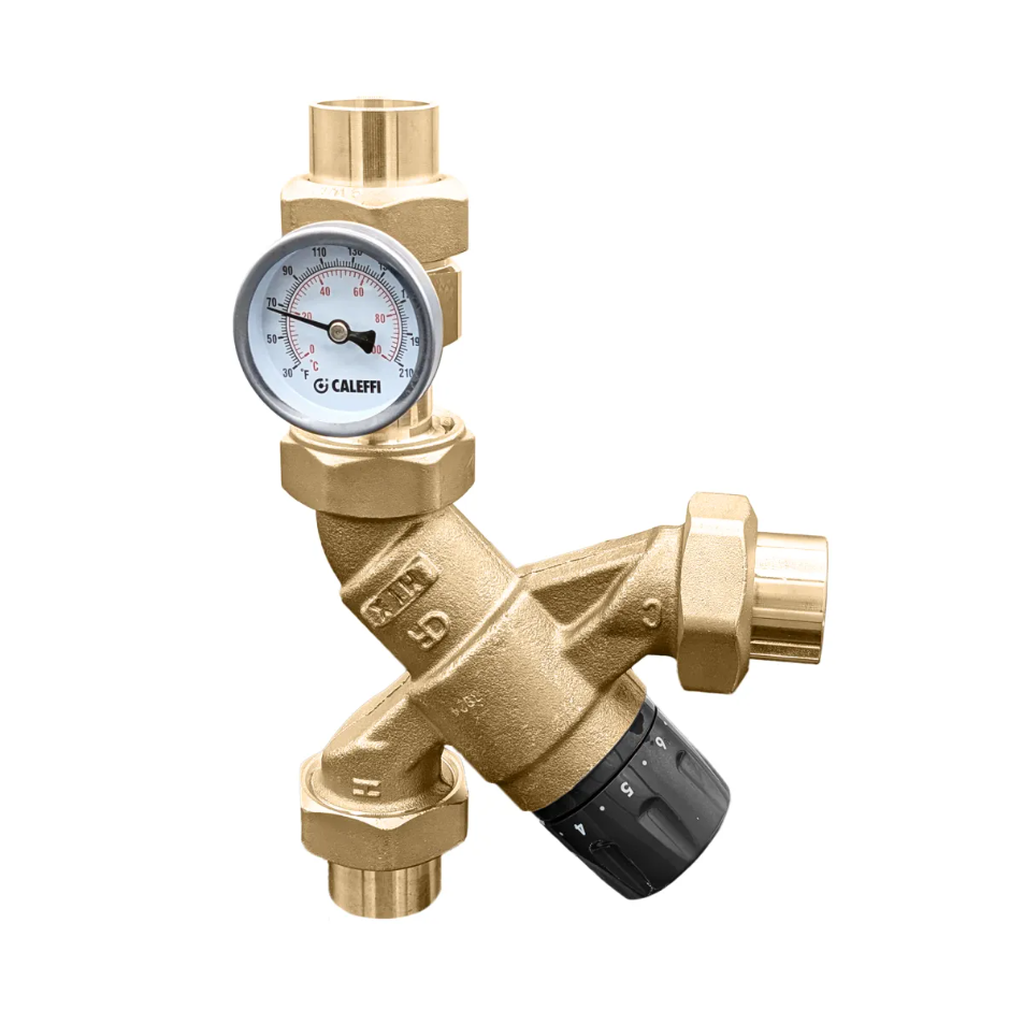

Caleffi AngleMix High Flow Angled Thermostatic Mixing Valve, 1 in. MNPT union w/Gauge & Checks

Caleffi AngleMix High Flow Angled Thermostatic Mixing Valve, 1 in. MNPT union w/Gauge & Checks

Factory Direct
$ 257.25 $ 257.25

30-day money back guarantee
  • Manufacturer
  • Series
  • Operating Temperature Range
  • Size
  • Material
  • Gauge
  • Connection Type
  • Max Working Pressure
  • Approvals
  • Model
  • Weight
  • Flow Coefficient CV
  • Flow Rate
  • Minimum flow rate
Get Quote
Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us
Manufacturer: Caleffi
Series: AngleMix+ 520 series
Operating Temperature Range: 95–150°F (35–65°C)
Size: 1"
Material: DZR low-lead brass (<0.25% lead content)
Gauge: 2" diameter, dual-scale 32-210°F / 0-100°C, 1% full-scale accuracy
Connection Type: 1" NPT male union with inlet port check valves
Approvals: ASSE 1017, CSA B125.3, UPC, IPC, NSF/ANSI/CAN 372
Model: 520610AC
Weight: 4.0 lb
Flow Coefficient CV: 3.5 (Kv 3.0)
Flow Rate: 16 gpm (60 l/min)
Minimum flow rate: 1.0 gpm (4 l/min)

Caleffi AngleMix High Flow Angled Thermostatic Mixing Valve, 1 in. MNPT union w/Gauge & Checks
